407-BBGN Technical Specification

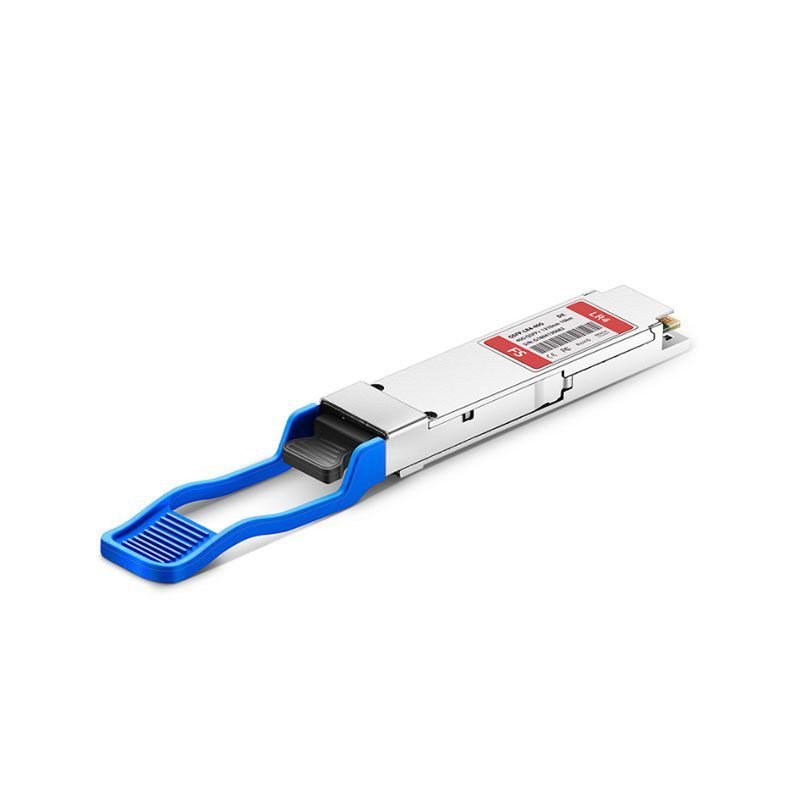

Dell QSFP+ 40GBASE-LR4 Optical Transceiver Module
Brand: Dell
Form Factor: QSFP+
Maximum Data Rate: 44.6Gbps (4x 11.2Gbps)
Wavelength: 1310nm
Maximum Cable Distance: 10km
Connector Type: Duplex LC
Media Type: SMF
Transmitter Technology: DFB CWDM
Receiver Technology: PIN
TX Power: -7 to 2.3dBm
Receiver Sensitivity: <-11dBm
Power Budget: 4dB
Receiver Overload: 2.3dBm
Power Consumption: ≤3.5W
Core Size: 9um
Extinction Ratio: >3.5dB
Modulation Format: NRZ
Host FEC: Supported
Bit Error Ratio (BER): 1E-12
This module is designed for long-distance communication, making it ideal for data centers and enterprise networks that require robust and efficient optical connectivity.
