407-BBOO Technical Specifications

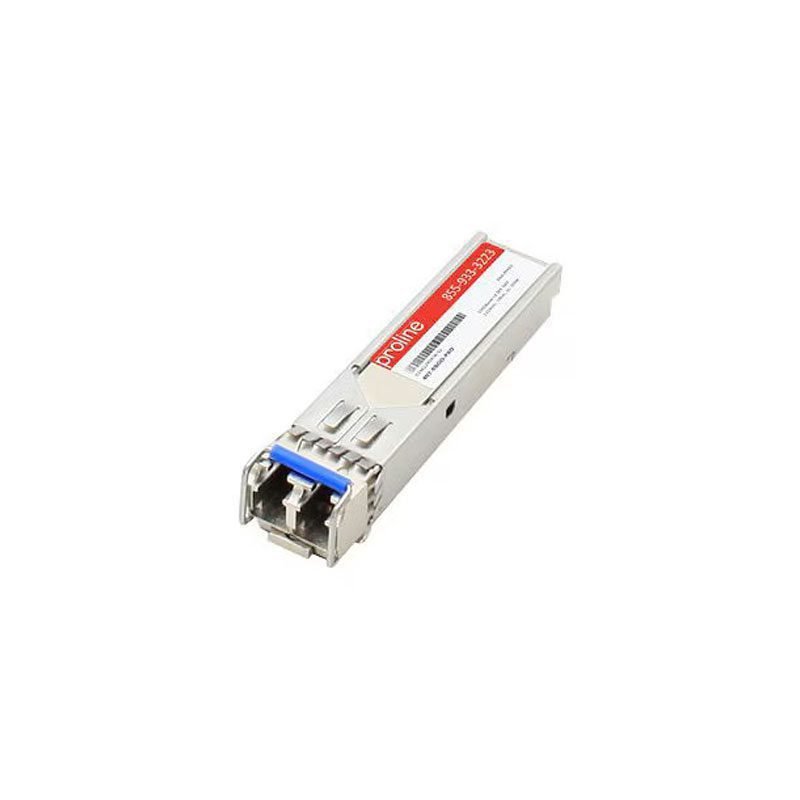

Dell Networking SFP 1000BASE-LX Transceiver
Manufacturer: Proline
Device Type: SFP (mini-GBIC) transceiver module
Form Factor: Plug-in module
Connectivity Technology: Wired
Cabling Type: 1000Base-LX
Data Link Protocol: GigE
Data Transfer Rate: 1 Gbps
Optical Wave Length: 1310 nm
Maximum Transfer Distance: 10km (6.2 miles)
Interfaces: 1 x Ethernet 1000Base-LX
Connector: Duplex LC
Media: SMF
Transmitter Type: FP
Receiver Type: PIN
DDM/DOM: Supported
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
TX Power: -9.5 ~ -3dBm
Receiver Sensitivity: < -20dBm
Power Consumption: ≤1W
Receiver Overload: -3dBm
Bit Error Ratio (BER): 1E-12
Extinction Ratio: >9dB
EMC: Supported
MTBF (LX): 4,761,904 Hours
