7X06A0BYCN Lenovo ThinkSystem SR650 2U Rack Server

7X06A0BYCN Technical Specification

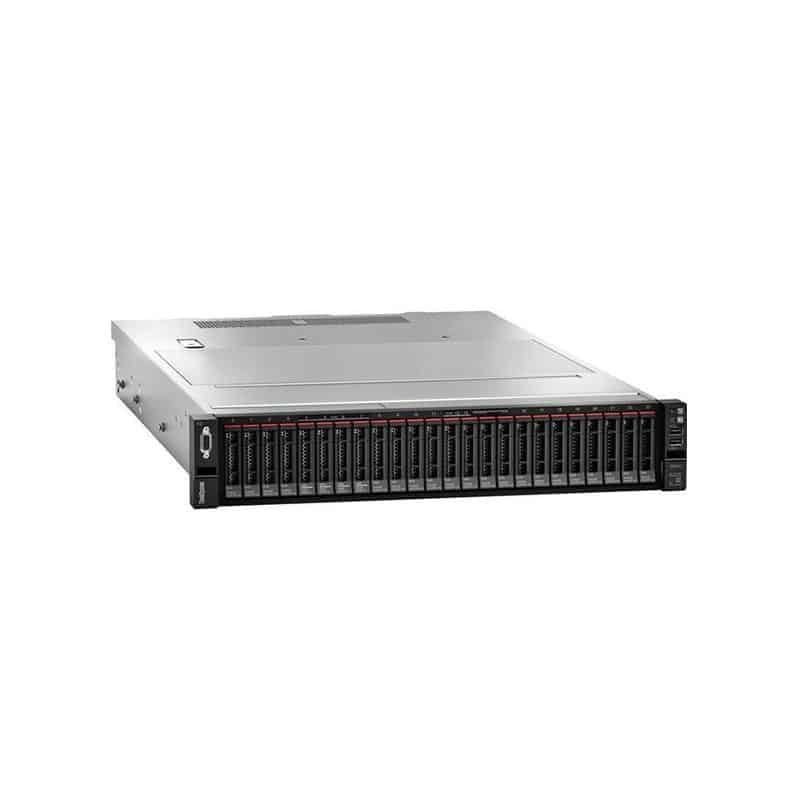

Lenovo ThinkSystem SR650 Server

This 2U rack server can accommodate up to two 2nd Generation Intel® Xeon® Platinum processors with a maximum power draw of 205W. Memory capacity reaches up to 9TB through 24 DIMM slots utilizing 128GB DIMMs, alongside Intel® Optane™ DC Persistent Memory, supporting speeds of 2666/2933MHz TruDDR4. For expansion, the server provides up to 7 PCIe 3.0 slots, with multiple riser configurations available, including one dedicated slot for RAID adapters. Storage options include up to 14 hot-swap bays for 3.5” drives or up to 24 bays for 2.5” drives, along with up to 12 AnyBay and 24 NVMe bays, plus 2 M.2 boot drives configured in RAID 1. RAID support includes hardware RAID with up to 24 ports and flash cache, as well as 16-port HBA capabilities. Security features comprise TPM 1.2/2.0, predictive failure analysis, and hot-swap capabilities for drives, fans, and power supplies, ensuring reliable operation even at continuous temperatures of 45°C. Networking is supported by 2/4-port 1GbE and 10GbE LOM options, alongside a dedicated management port. Power configurations range from 550W to 1600W, all compliant with Energy Star 2.0 standards. System management is facilitated with the embedded XClarity Controller and various XClarity tools for centralized management. Compatible operating systems include Microsoft, Red Hat, SUSE, and VMware. For further details, please visit lenovopress.com/osig.
