Technical Specifications for 800081-S01

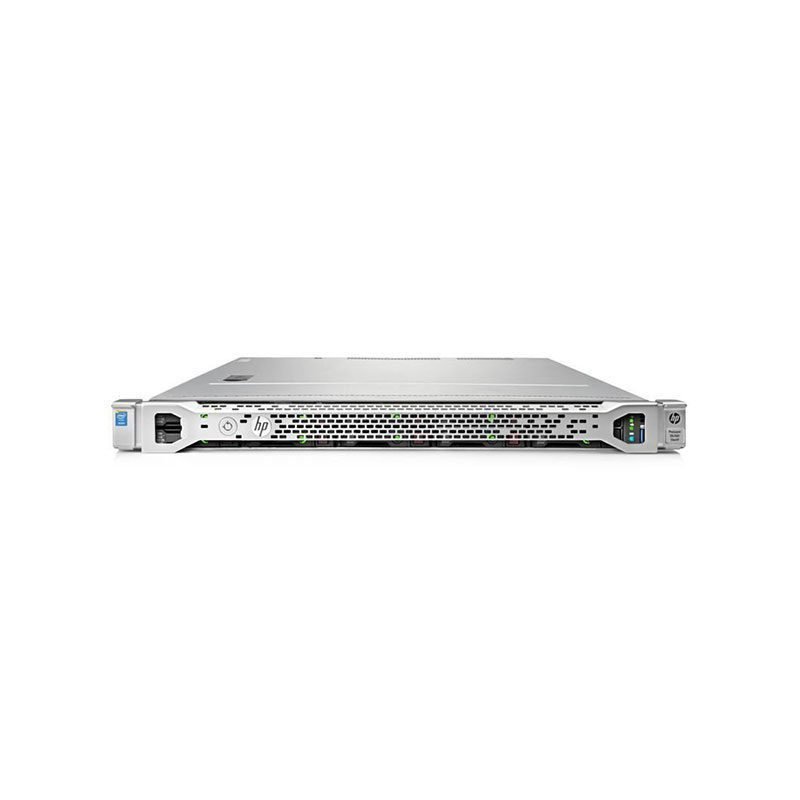

HP Proliant DL360 Gen9 – 1U Rack Mount Server
GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Part Number: 800081-S01
Product Name: Proliant DL360 Gen9 (1U Rack Mount)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2643v3 at 3.2GHz
Max Turbo Speed: 3.6GHz
Quickpath Interconnect: 9.60 GT/s
Cores: Octa-Core (8 cores)
64-Bit Computing: Yes
Socket Compatibility: FCLGA2011-3
Installed Quantity: 1, Max Supported: 2
Chipset: Intel C610 Series
CACHE MEMORY:
Cache Type: Smart Cache
Installed Size: 20MB
MEMORY:
Capacity: 32GB (Max: 384GB)
Technology: DDR4 SDRAM with Advanced ECC
Speed: 2133MHz
Compliance: PC4-17000
Form Factor: DIMM 288-Pin
Slots: 24 DDR4 RAM Slots
Features: Registered, Online Spare, Quad Channel Architecture
Configuration: 2 x 16GB
Supported RAM: PC4-17000 (Load-Reduced and Registered)
STORAGE CONTROLLERS:
Controller: Smart Array P440ar
Buffer: 2GB
Drive Types: 12Gb/s SAS, 6Gb/s SATA
SAS Port Rate: 12Gb/s per link
PCIe Rate: PCI Express 3.0 x8
Drives: Up to 26
Logical Drives: Up to 64
RAID Support: 0, 1, 5, 6, 10, 50, 60, 1 Adm, 10 Adm
NETWORK & COMMUNICATION:
Type: Integrated
Ethernet Ports: 4 Gigabit
Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Management: Integrated Lights-Out 4
Features: Wake On LAN, PXE Support
Standards: IEEE 802.3, 802.3u, 802.3ab
POWER DESCRIPTION:
Type: Hot-Plug Power Supply
Redundancy: Yes (1+1)
Installed: 2, Max Supported: 2
Voltage: AC 120/230V (50/60Hz)
Power: 500W
Certification: 80 Plus Platinum
