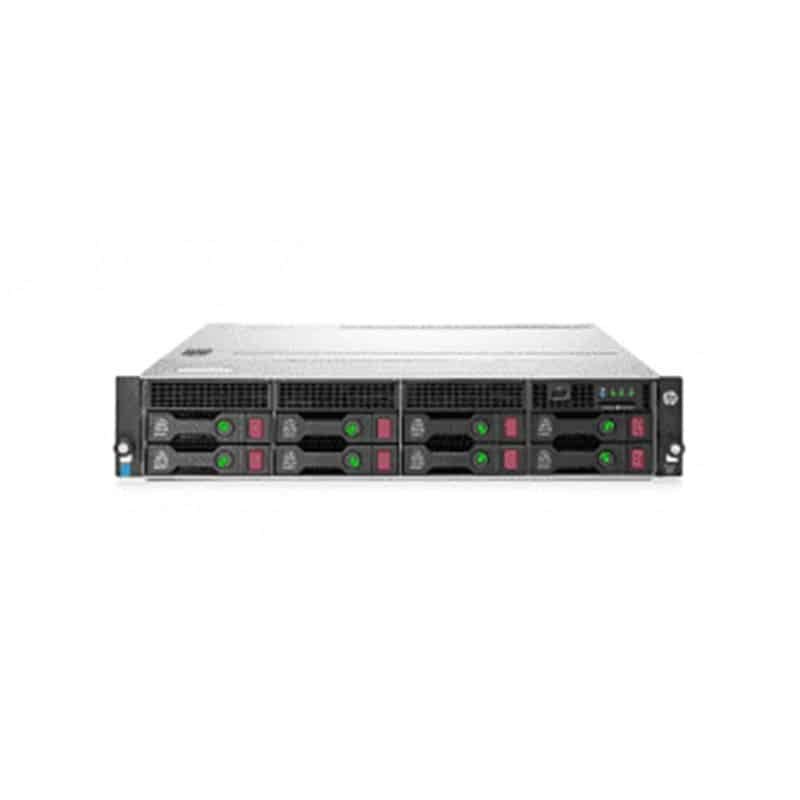

833869-B21 HP ProLiant DL80 Gen9 – Intel Xeon 8-Core Server

833869-B21 Technical Specifications

HP ProLiant DL80 Gen9 Base Model with 1X Intel Xeon 8-Core E5-2609V4/1.7GHz, 8GB DDR4 SDRAM, Smart Array H240 FBWC, 8 LFF, 1GB 2-port 361I Ethernet Adapter, and 1X 550W Power Supply in a 2U form factor

GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 833869-B21
Product Name: ProLiant DL80 Gen9 2U Rack Mount (Base Model)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2609v4 / 1.7GHz
QuickPath Interconnect: 6.40 GT/s
Number of Cores: 8-Core
64-Bit Computing: Yes
Compatible Processor Socket: FCLGA2011-3
Installed Qty: 1
Max Supported Qty: 2
CPU Upgradability: Upgradable
CACHE MEMORY:
Cache Memory Type: Smart Cache
Installed Size: 20MB
Cache Per Processor: 20MB
MEMORY:
Bays: 8
Installed Size: 8GB / Max: 128GB
Technology: DDR4 SDRAM – Advanced ECC
Memory Speed: 1833 MHz
Memory Specification Compliance: PC4-19200
Form Factor: DIMM 288-Pin
Features: Registered, Online Spare Memory, Quad Channel Memory Architecture, HP SmartMemory
Configuration Features: 1 X 8GB
Max RAM Supported: 128GB – Registered, 256GB – Load-Reduced
STORAGE:
Hard Drive: None
Optical Drive: None
STORAGE CONTROLLERS:
Storage Controller Name: Smart Array H240
Disk Drive: 12GB/s SAS, 6GB/s SATA
SAS Port Link Rate: 12GB/s
RAID Support: RAID 0, 1, 5, 10, 50
GRAPHICS CONTROLLER:
Type: Integrated
Graphics Processor: Matrox G200eh2
Video Interfaces: VGA
NETWORK & COMMUNICATION:
Ethernet Controller: HP Ethernet 1GB 2-Port 361i Adapter
Remote Management Controller: Integrated Lights-Out 4
POWER DESCRIPTION:
Device Type: Flex Slot Platinum Plus Power Supply
Installed Qty: 1
Power Provided: 550 Watts
Nominal Voltage: AC 120/230V (50/60Hz)
