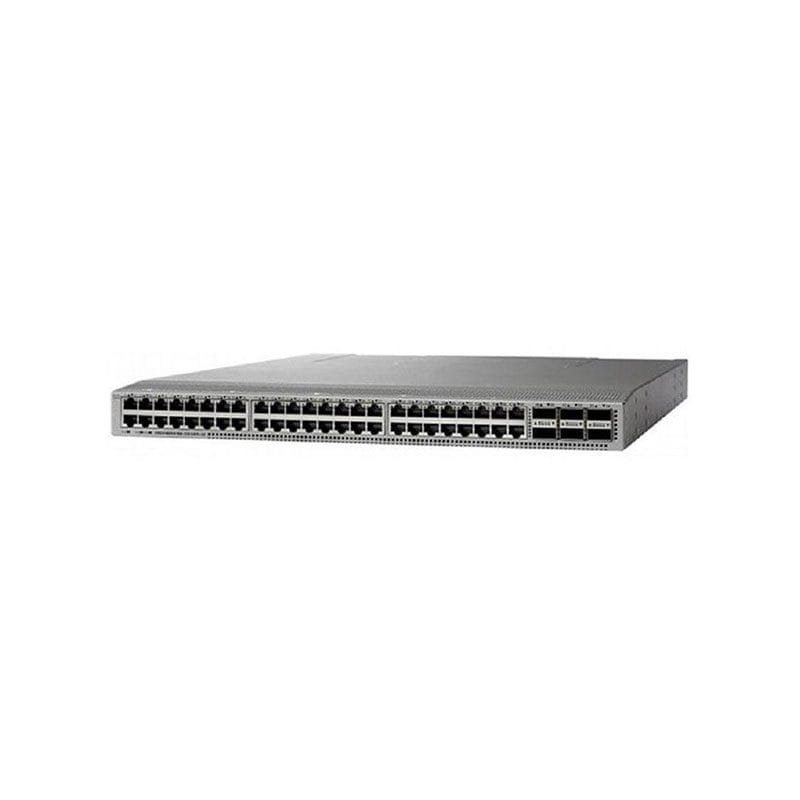

C1-N9K-C93108TC-EX Cisco ONE Nexus 93108TC-EX 48-Port Switch

C1-N9K-C93108TC-EX Technical Specifications

Cisco ONE Nexus 93108TC-EX 48-Port Switch

Interface Provided
Comments: Downlink
Connector Type: RJ-45
Qty: 48
Type: 10GBase-T
Comments: Uplink
Connector Type: QSFP28
Qty: 6
Type: 100Gbit/40Gbit LAN
Connector Type: SFP+
Qty: 1
Type: Management
Type: Serial (RS-232)
Type: USB
Networking
Advanced Switching: Layer 3
Features: 40MB system buffer, Ethernet Virtual Private Network (EVPN), High Availability, Hot-swappable 4 fans, In-Service Software Upgrade (ISSU), Layer 3 switching, NPV Gateway mode, Source-Specific Multicast (SSM), Virtual Extensible LAN (VXLAN), Virtual PortChannel (vPC) technology
Form Factor: Rack-mountable
MAC Address Table Size: 512K entries
Ports Qty: 48
Routing Protocol: BGP, ECMP, EIGRP, HSRP, MPLS, MSDP, OSPF, PIM-SM, RIP, RIP-2
Subcategory: Network hubs and switches
Subtype: 10 Gigabit Ethernet
Type: Switch
Miscellaneous
Color Category: Gray
Compliant Standards: AS/NZS 60950-1, CAN/CSA C22.2 No. 60950-1, CISPR 22 Class A, RoHS, UL 60950-1 Second Edition
Height (Rack Units): 1
Included Accessories: Fixed accessory kit
Environmental Parameters
Humidity Range Operating: 5 – 95% (non-condensing)
Max Operating Temperature: 104 °F
Max Storage Temperature: 158 °F
Min Operating Temperature: 32 °F
Min Storage Temperature: -40 °F
Header
Brand: Cisco
Compatibility: PC
Manufacturer: CISCO DS HARDWARE DIRECT
Model: 93108TC-EX
Packaged Quantity: 1
Product Line: Cisco ONE Nexus
Product Series: N9K
Power Device
Hot-Plug: Hot-plug
Installed Qty: 2
Max Supported Qty: 2
Power Redundancy: Optional
Power Redundancy Scheme: N+1
Type: Internal power supply
Service
Support Details Full Contract Period: 1 year
Support Details Service Included: Advance hardware replacement
Support Details Type: Limited warranty
Software Type: Cisco NX-OS
Dimensions & Weight
Depth: 22.5 in
Height: 1.7 in
Width: 17.3 in
Capacity
Type: ACL entries (egress)
Value: 2000
Type: Maximum number of links in a port channel
Value: 32
Type: VLANs supported
Value: 4096
Performance
Type: Bandwidth
Value: 3.6 Tbps
Ports
Qty: 48
Type: 10GBase-T
Ports (2nd)
Qty: 6
Type: 100 Gigabit QSFP28
RAM
Installed Size: 16 GB
