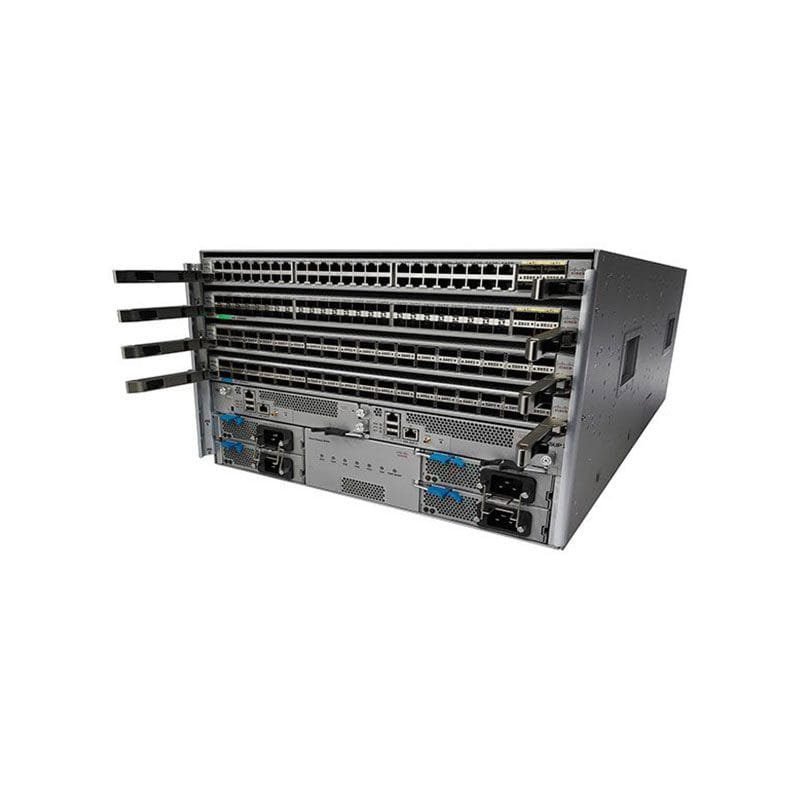

C1-N9K-C9504-B2 Cisco Nexus 9504 Modular Switch Bundle

C1-N9K-C9504-B2 Technical Specifications

Cisco Nexus 9504 Chassis Bundle Switch Managed Rack Mountable

Slot Availability
Free Slots: 2
Total Slots: 8
Type: Expansion slot
Networking Features
Switching Layer: Layer 3
Compliant Standards: IEEE 801.1p, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z
Key Features: Supports Access Control Lists (ACL), Auto-uplink (auto MDI/MDI-X), Broadcast Storm Control, Class of Service (CoS), DiffServ Code Point (DSCP), Flow Control, Link Aggregation Control Protocol (LACP), LLDP, Load Balancing, Modular Design, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP), Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP), RDMA, Spanning Tree Protocol (STP), Unicast Storm Control, VLAN support, Weighted Random Early Detection (WRED), and Weighted Round Robin (WRR) queuing.
Form Factor: Rack-mountable
Manageable: Yes
Remote Management Protocols: RMON, SNMP 1, 2, 3, SSH-2
Routing Protocol: Static IP routing
Subcategory: Network hubs and switches
Type: Switch Bundle
Miscellaneous
Authentication Methods: RADIUS, TACACS+
Color: Gray
Compliant Standards: AS/NZS 60950-1, CISPR 22 Class A, CISPR 24, CNS 13438(95) Class A, CSA C22.2 No. 60950-1 Second Edition, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, GB 4943, ICES-003 Class A, KN22, RoHS, UL 60950-1 Second Edition, VCCI Class A
Height (Rack Units): 7.1
Environmental Parameters
Operating Humidity: 5 – 95% (non-condensing)
Storage Humidity: 5 – 95% (non-condensing)
Max Operating Temperature: 104 °F
Max Storage Temperature: 158 °F
Min Operating Temperature: 32 °F
Min Storage Temperature: -40 °F
Header
Brand: Cisco
Included Components: Cisco Nexus 9500 Supervisor (N9K-SUP-A), 2x Cisco Nexus 9500 System Controller (N9K-SC-A), 6x Cisco Fabric Module (N9K-C9504-FM)
Compatibility: PC
Manufacturer: CISCO DS HARDWARE DIRECT
Model: 9504 Chassis Bundle
Packaged Quantity: 1
Product Line: Cisco Nexus
Product Series: N9K
Power Device
Features: Front-to-rear airflow
Frequency: 50 – 60 Hz
Hot-Plug: Yes
Installed Quantity: 3
Max Supported Quantity: 3
Nominal Voltage: AC 230 V
Power Output: 3000 Watt
Power Redundancy: Yes
Type: Internal power supply
Dimensions & Weight
Depth: 30 in
Height: 8 in
Width: 17.5 in
Capacity
Type: Virtual interfaces (VLANs)
Maximum Value: 4096
