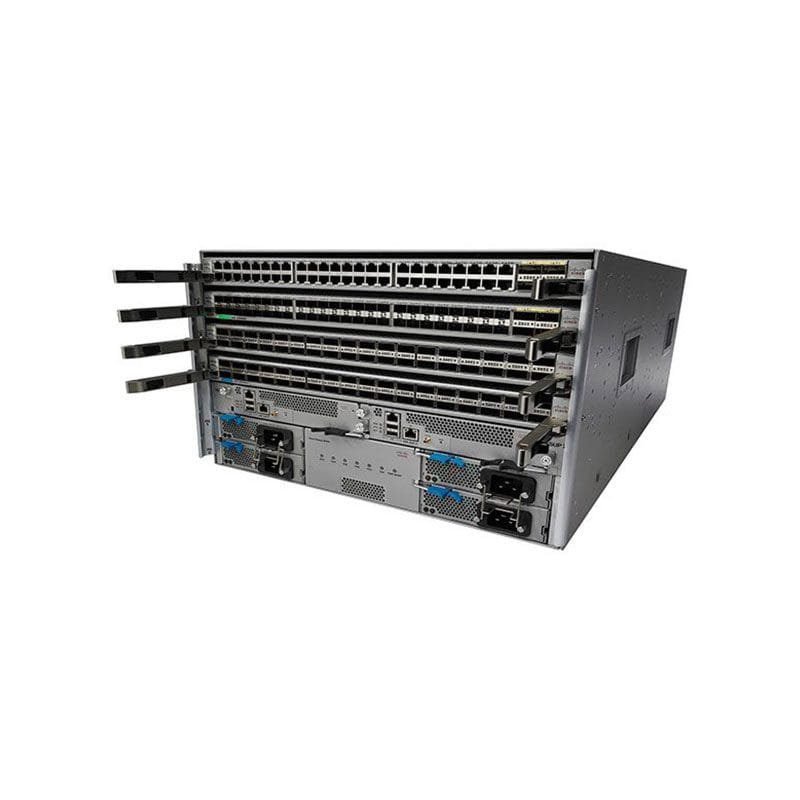

C1-N9K-C9504-B3-E Technical Specifications
Cisco ONE Nexus 9504 Bundle Switch Managed Rack Mountable
Slot Configuration
Available Slots: 1 out of 8 total (Expansion slot type)
Networking Capabilities
Switching Layer: Layer 3
Standards Compliance: IEEE 801.1p, 802.1ab (LLDP), 802.1D, 802.1Q, 802.1s, 802.1w, 802.3ad (LACP), 802.3ae, 802.3ba, 802.3x, 802.3z
Key Features: 160MB packet buffer, 3 cooling fans, ACL support, auto-uplink, broadcast storm control, CoS, DSCP support, flow control, LACP, LLDP, load balancing, modular architecture, multicast storm control, MSTP support, port air intake, QoS, RSTP support, RDMA, STP support, unicast storm control, VLAN support, WRED, WRR queuing
Form Factor: Rack-mountable
Manageable: Yes
Remote Management Protocols: RMON, SNMP 1, 2, 3, SSH-2
Routing Protocol: Static IP routing
Subcategory: Network hubs and switches
Type: Switch Bundle
Miscellaneous Information
Authentication Methods: RADIUS, TACACS+
Color: Gray
Standards Compliance: AS/NZS 60950-1, CISPR 22 Class A, and others
Rack Units: 7
Included Accessories: Fabric module covers, fan trays, line card covers, accessory kit, power supply cover, supervisor cover
Rack Mounting Kit: Included
Environmental Parameters
Operating Humidity: 5 – 95% (non-condensing)
Operating Temperature: Up to 104 °F
Storage Temperature: Up to 158 °F
Min Operating Temperature: 32 °F
Min Storage Temperature: -40 °F
Header Information
Brand: Cisco
Included Components: Cisco Nexus 9500 Supervisor, 2x System Controllers, 4x Fabric Modules
Compatibility: PC
Manufacturer: CISCO DS HARDWARE DIRECT
Model: 9504
Packaged Quantity: 1
Product Line: Cisco ONE Nexus
Product Series: N9K
Power Specifications
Features: Front-to-rear airflow
Hot-Plug Capability: Yes
Installed Quantity: 3
Max Supported Quantity: 3
Power Supply: 3000 Watt
Redundancy: Yes
Type: Internal power supply
Dimensions & Weight
Depth: 33.1 in
Height: 12.2 in
Width: 17.5 in
Capacity
Type: Virtual interfaces (VLANs)
Value: 4096
Chassis Information
Installed Device Modules: 7
Supported Device Modules: 8
Performance Metrics
Type: Bandwidth
Value: 15 Tbps
