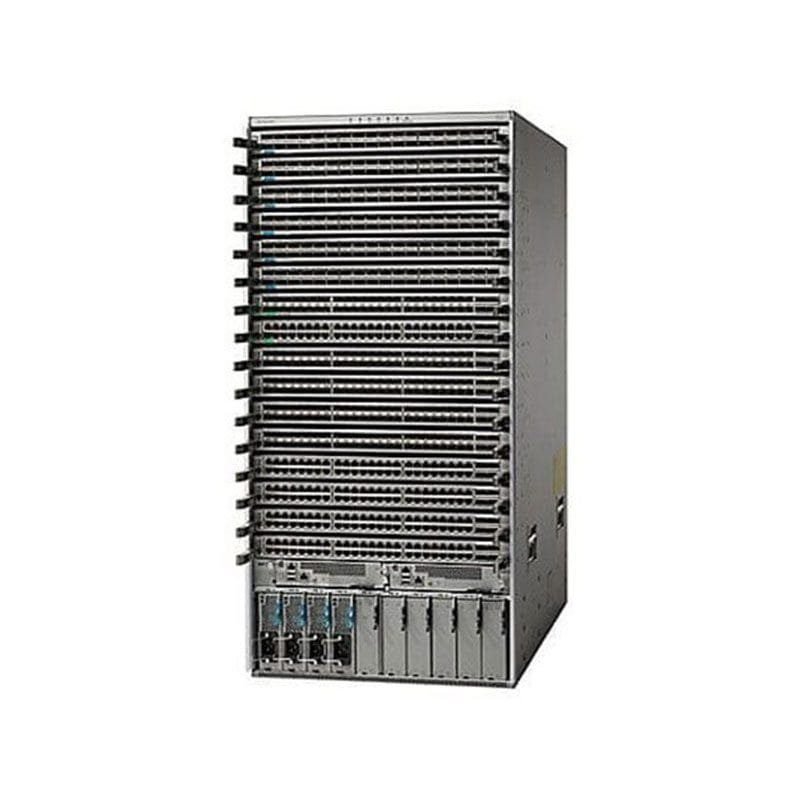

C1-N9K-C9516 Cisco ONE Nexus 9516 Rack-Mount Switch

C1-N9K-C9516 Technical Specifications

Cisco ONE Nexus 9516 Rack-Mount Switch

Slot Provided
Free Qty: 16
Total Qty: 16
Type: Expansion slot
Networking
Features: Modular design
Form Factor: Rack-mountable
Subcategory: Network hubs and switches
Type: Switch
Miscellaneous
Color Category: Gray
Compliant Standards: AS/NZS 60950-1, CISPR 22 Class A, CISPR 24, CNS 13438(95) Class A, CSA C22.2 No. 60950-1 Second Edition, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, GB 4943, ICES-003 Class A, IEC 60950-1 Second Edition, KN22, RoHS, UL 60950-1 Second Edition, VCCI Class A
Height (Rack Units): 21
Included Accessories: 3 fan trays, Rack mount kit
MTBF: 680,000 hours
Environmental Parameters
Humidity Range Operating: 5 – 95% (non-condensing)
Max Operating Temperature: 104 °F
Max Storage Temperature: 158 °F
Min Operating Temperature: 32 °F
Min Storage Temperature: -40 °F
Header
Brand: Cisco
Bundled with: 2 x Cisco Nexus 9500 System Controller (N9K-SC-A)
Compatibility: PC
Manufacturer: CISCO DS HARDWARE DIRECT
Model: 9516
Packaged Quantity: 1
Product Line: Cisco ONE Nexus
Product Series: N9K
Power Device
Features: Front-to-rear airflow
Hot-Plug: Hot-plug
Installed Qty: 0
Max Supported Qty: 3
Power Redundancy: Yes
Type: Internal power supply
Dimensions & Weight
Depth: 31.8 in
Height: 36.8 in
Width: 17.5 in
Chassis
Installed Devices Modules Qty: 0
Supported Devices Modules Qty: 16
