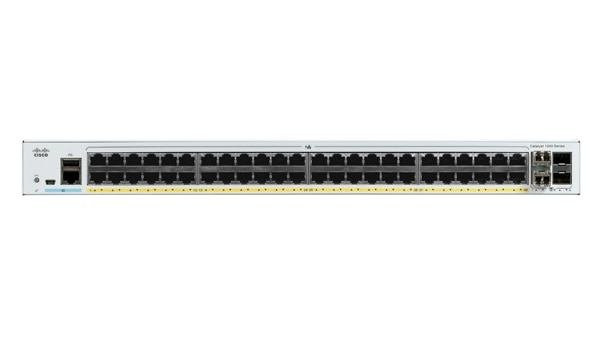

C1000-48FP-4X-L Cisco Catalyst 1000 48-Port Switch

C1000-48FP-4X-L Technical Specifications

Cisco Catalyst 1000 48-Port Switch

Product Line: Cisco Catalyst
Product Series: C1000
Hardware
Interface: 48x 10/100/1000 Ethernet ports and 4 SFP uplinks
Ethernet Technology: Gigabit Ethernet
PoE power budget: 740W
Available PoE power per port: 30W for 24 ports or 15W for 48 ports
Console ports:
1x RJ-45 Ethernet
USB mini-B
USB-A port for storage and Bluetooth console
Indicator LEDs:
Per-port status: link integrity, disabled, activity
System status: system
Dimensions (WxDxH in inches): 17.5 x 10.73 x 1.73
Weight: 3.95 lbs
Memory and Processor
CPU: ARM v7 800 MHz
DRAM: 512 MB
Flash Memory: 256 MB
Performance
Forwarding bandwidth: 88 Gbps
Switching bandwidth: 176 Gbps
Forwarding rate (64-byte L3 packets): 77.38 Mpps
Unicast MAC addresses: 15,360
IPv4 unicast direct routes: 542
IPv4 unicast indirect routes: 256
IPv6 unicast direct routes: 414
IPv6 unicast indirect routes: 128
IPv4 static routes: 16
IPv6 static routes: 16
