C9300-48T-1E Technical Specifications

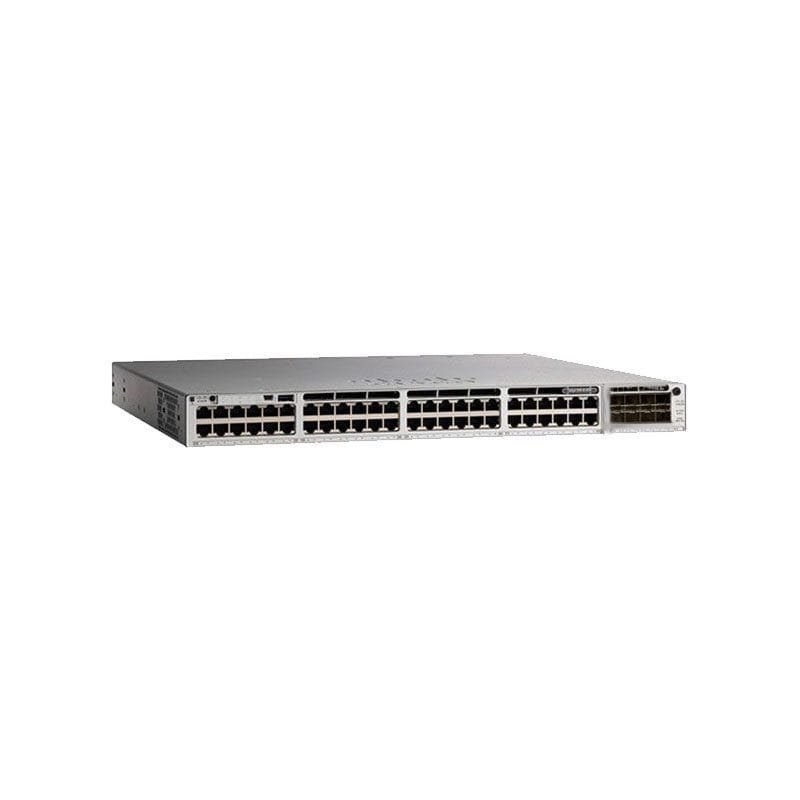

Cisco Catalyst 9300 Network Essentials Switch 48 Port Managed
Slot Information
Free Quantity: 1
Total Quantity: 1
Type: Expansion slot
Interface Details
Connector Type: RJ-45
Quantity: 48
Type: 1000Base-T
Quantity: 1
Type: USB 2.0
Networking Capabilities
Advanced Switching: Layer 3
Standards Compliance: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, among others
Features: 16MB packet buffer, 3 fans, 802.1x authentication, and more
Form Factor: Rack-mountable
Jumbo Frame Support: 9198 bytes
Manageable: Yes
Ports Quantity: 48
Remote Management Protocol: CLI, NETCONF, RESTCONF, SNMP versions
Routing Protocol: IGMP, OSPF, RIP, and others
Stackable: Yes
Miscellaneous Information
Color: Gray
Compliant Standards: Various international standards
Encryption: 128-bit AES
Height (Rack Units): 1
MTBF: 305,870 hours
Environmental Parameters
Operating Humidity: 5 – 90% (non-condensing)
Operating Temperature: 23 °F to 113 °F
Power Specifications
Power Supply: Internal, 350 Watt
Dimensions
Depth: 17.5 in
Height: 1.7 in
Weight: 16.42 lbs
Width: 17.5 in
Performance Metrics
Forwarding Rate: 190.48 Mpps
Switching Capacity: 128 Gbps
Stacking Bandwidth: 480 Gbps
RAM
Installed Size: 8 GB
