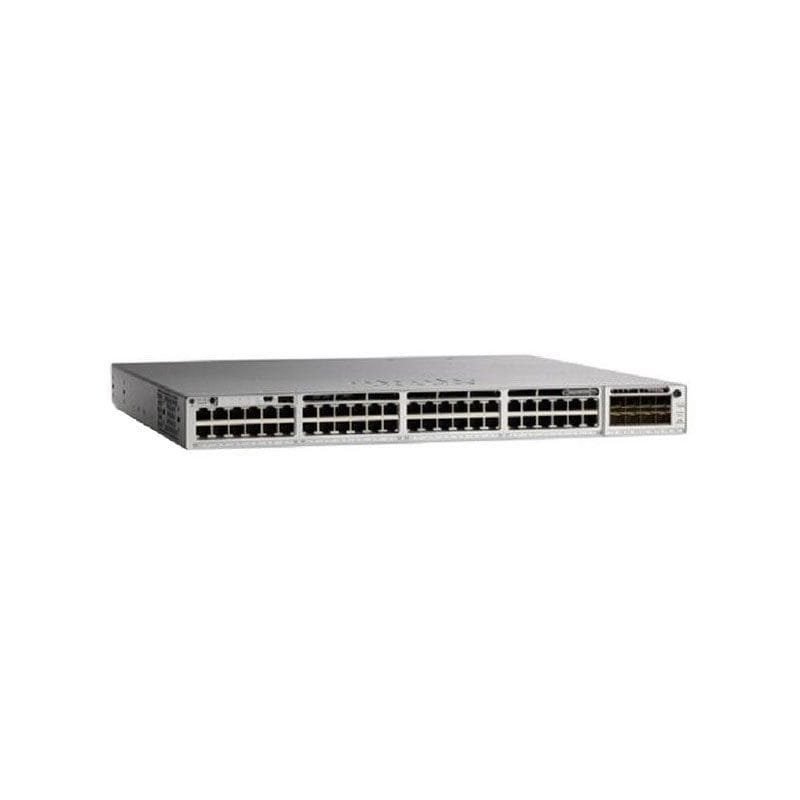

C9300-48UXM-1E Cisco Catalyst 9300 48-Port Network Switch

C9300-48UXM-1E Technical Specifications

Cisco Catalyst 9300 Network Essentials 48-Port Managed Switch

Capacity

• Flexible NetFlow entries: 64,000
• IPv4 routing table entries: 32,000
• IPv6 routing table entries: 16,000
• Packet buffer size: 32 MB
• Switched virtual interfaces (SVIs): 2,000
• VLAN IDs: 4,000

Dimensions & Weight

• Depth: 22.2 in
• Height: 1.7 in
• Weight: 20.59 lbs
• Width: 17.5 in

Environmental Parameters

• Operating Humidity: 5 – 90% (non-condensing)
• Storage Humidity: 5 – 90% (non-condensing)
• Max Operating Temperature: 113 °F
• Max Storage Temperature: 158 °F
• Min Operating Temperature: 23 °F
• Min Storage Temperature: -40 °F

Flash Memory
Installed Size: 16 GB
Header
Brand: Cisco
Edition: Network Essentials
Manufacturer: CISCO DS HARDWARE DIRECT
Model: 9300
Packaged Quantity: 1
Product Line: Cisco Catalyst
Interface Provided
Comments: UPOE
Connector Type: RJ-45
Qty: 36
Type: 2.5Gbit LAN
Qty: 1
Type: USB 2.0
Qty: 12
Type: 1/2.5/5/10GBase-T
Performance
Forwarding rate: 431.54 Mpps
Switching capacity: 580 Gbps
Stacking bandwidth: 480 Gbps
Power Device
Nominal Voltage: AC 120/230 V
Power Budget: 490 W
Type: Internal power supply
RAM
Installed Size: 8 GB
