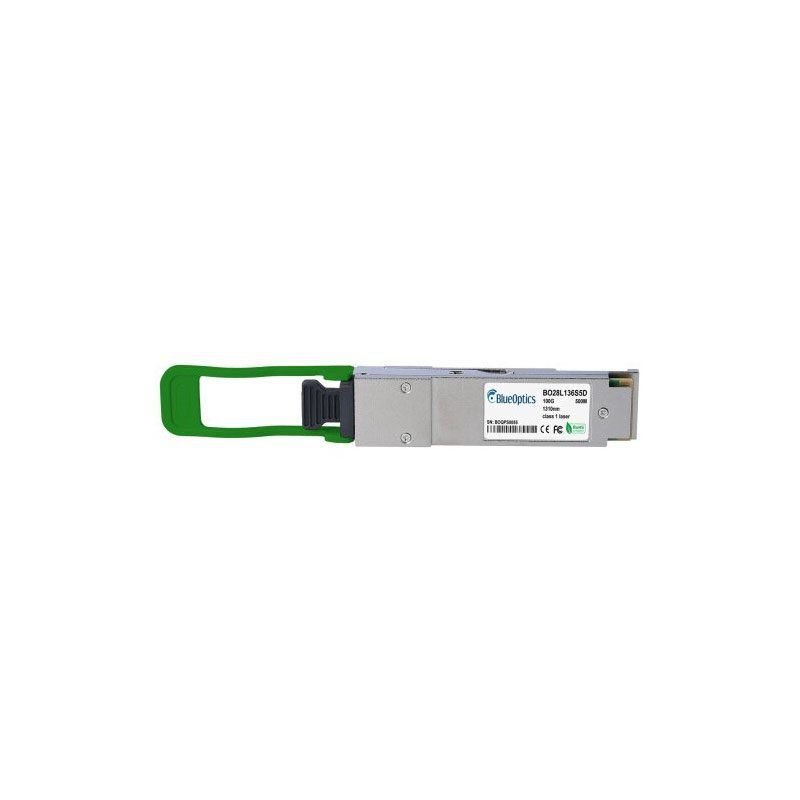

E100G-QSFP28-DR1 Technical Specification
Ruckus Single Lambda 100Gbps PAM4 QSFP28 100GBASE-DR 1310nm 500m SMF Duplex LC DDM/DOM
Brand: Ruckus
Form Factor: QSFP28
Maximum Data Rate: 106.26Gbps
Maximum Distance: 500m (1640ft)
Wavelength: 1310nm
Connector: Duplex LC
DDM/DOM Support Media: SMF
Transmitter Type: EML
Receiver Type: PIN
Transmitter Power: -2.4 to 4dBm
Receiver Sensitivity: < -4.5dBm
Transmit and Dispersion Penalty: 3.4dB
Extinction Ratio: 3.5dB
Power Budget: 2.1dB
Signal Conditioner: DSP for TX and RX
Modulation Format: PAM4
Host FEC: Support
Power Consumption: 4.5W Commercial
Temperature Range: 0 to 70°C (32 to 158°F)
