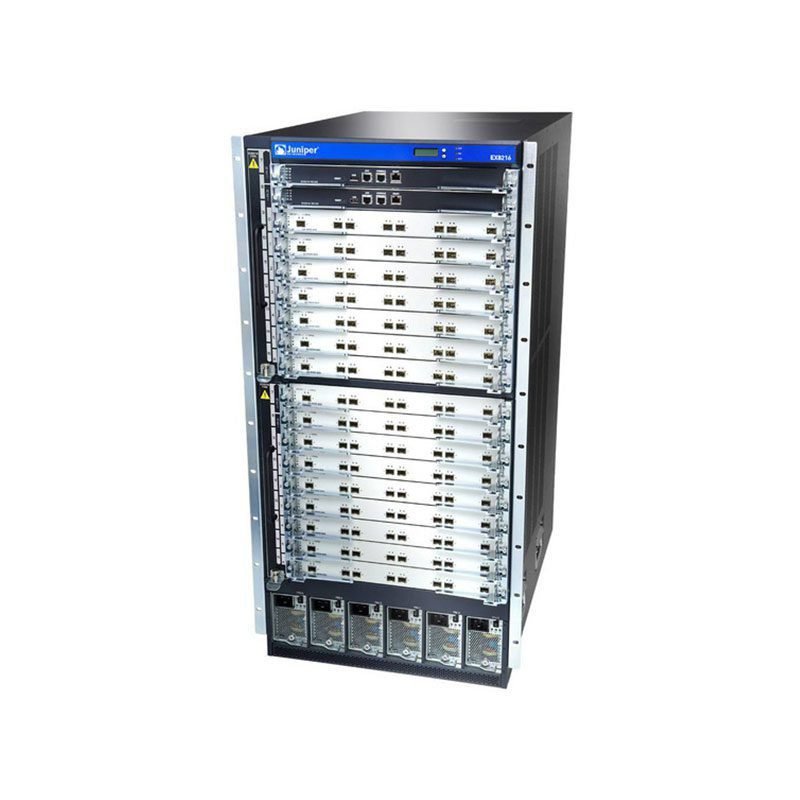

EX8216-REDUND-AC Juniper Networks EX 8216 Managed Switch

EX8216-REDUND-AC Technical Specifications

Juniper Networks EX 8216 Managed Switch

Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks EX 8216
Packaged Quantity: 1
Chassis
Built-in Devices: Status LCD
Installed Devices/Modules Quantity: 10
Supported Devices/Modules Quantity: 16
Networking
Type: Switch
Subcategory: Network hubs and switches
Form Factor: Desktop
Routing Protocols: IGMPv3, RIP-1, OSPFv2, IGMPv2, BGP, IS-IS, RIP-2, IGMP, VRRP
Manageable: Yes
Remote Management Protocols: RMON 1, SNMP 1, RMON 3, HTTPS, SNMP 2c, SNMP 3, HTTP, RMON 2, SSH-2, RMON 9
Power Over Ethernet (PoE): Yes
Status Indicators: LCD display
Features: Quality of Service (QoS), BOOTP support, Temperature sensor, VLAN support, DHCP server, ARP support, Firewall protection, Jumbo Frames support, IPv6 support, Flow control
Compliant Standards: IEEE 802.3z, IEEE 802.3ab, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP), IEEE 802.1p, IEEE 802.1D, IEEE 802.3, IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s
Expansion Slots
Total Expansion Slots: 16 (6 free)
Power Device
Type: Internal power supply
Power Redundancy: Yes
Installed Quantity: 6
Max Supported Quantity: 6
Nominal Voltage: AC 120/230 V
Power Consumption (Operational): 1180 watts
System Requirements
OS Required: JUNOS
Miscellaneous
Authentication Methods: RADIUS, TACACS+
Compliant Standards: CSA 22.2 No. 60950, CSA C22.2 No. 60950-1-03, IEC 60950-1, EN 60950-1, TUV GS, UL 60950-1, IEC 825-1/EN 60825-1 class 1, cUL
Dimensions & Weight
Width: 17.3 inches
Depth: 29.1 inches
Height: 36.5 inches
Weight: 277.78 lbs
Environmental Parameters
Minimum Operating Temperature: 32°F
Maximum Operating Temperature: 104°F
Operating Humidity Range: 5 – 90%
