FTLF8532P5BCV Technical Specification

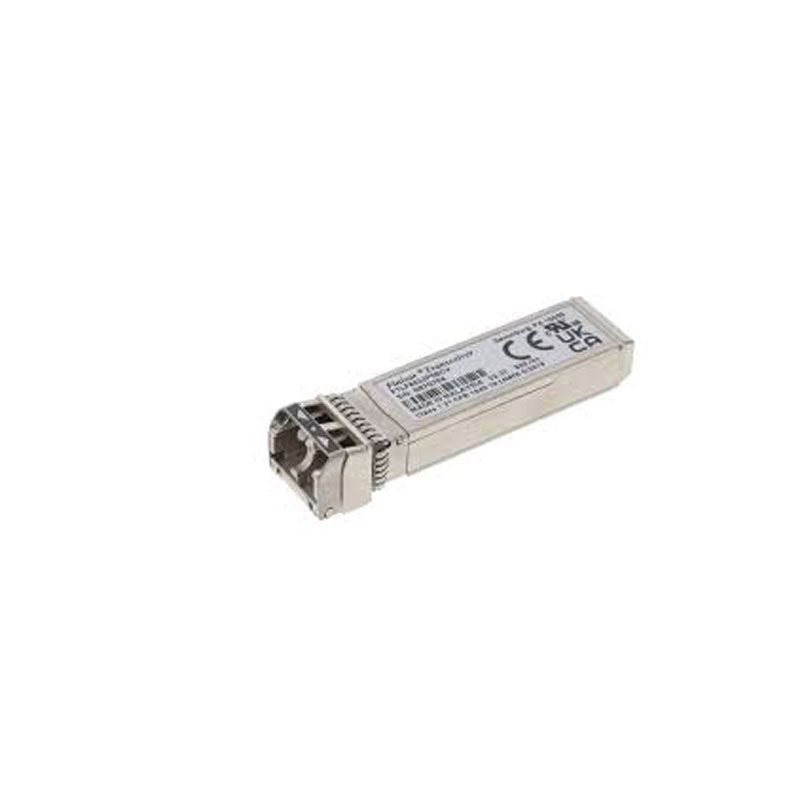

Finisar 32G FC SFP28 Transceiver
Brand: Finisar
Media Type: Multi-Mode Fiber (MMF)
TX Wavelength: 850 nm
RX Wavelength: 850 nm
Minimum Optical Budget: 1.8 dB
Maximum Distance: 100m
Supported Data Rate: 8.5-28.05 Gbps
Supported Applications: 32G Fiber Channel (28.05Gbps), 16G Fiber Channel (14.025Gbps), 8G Fiber Channel (8.5 Gbps)
DDM/DOM: Supported
Temperature Range: Standard 0°-70°C
Connectors: Double LC
Tx Wavelength Bandwidth: 20 nm (840-860 nm)
Rx Wavelength Bandwidth: 20 nm (840-860 nm)
Minimum Transmitting Power: -8.4 dBm
Maximum Transmitting Power: 2.4 dBm
Receiver Sensitivity: -10.2 dBm
Receiver Overload: 2 dBm
Transmitter Type: VSCEL Laser
Receiver Type: PIN photodiode
Power: +3.3V single power supply
