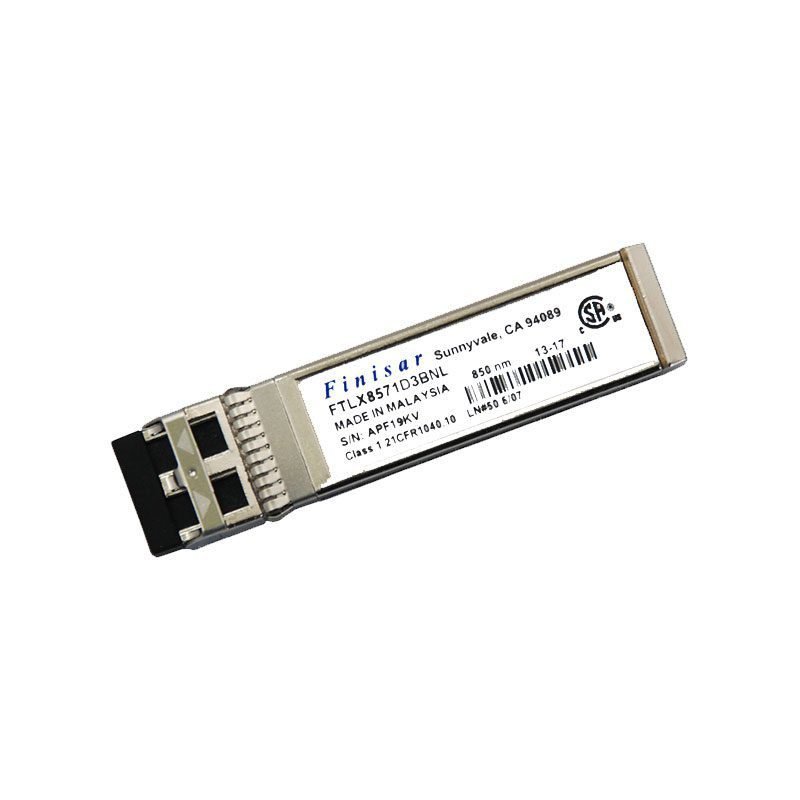

FTLX8571D3BNL Finisar 10Gb/s SFP+ Transceiver Module

FTLX8571D3BNL Technical Specifications

Finisar Transceiver Module

This SFP+ module features a hot-pluggable design, supporting bit rates from 9.95 to 10.5 Gb/s for 10 Gigabit Ethernet applications. It operates with a low power dissipation of less than 1W and is rated for an extended temperature range of 0°C to 85°C. The module requires a single 3.3V power supply and can achieve a maximum link distance of 300 meters on 2000 MHz-km multimode fiber (MMF). It utilizes an uncooled 850nm VCSEL laser and includes a limiting electrical interface for the receiver. The connection is made via an LC Duplex connector, and built-in digital diagnostic functionalities enhance monitoring and performance assessment.
