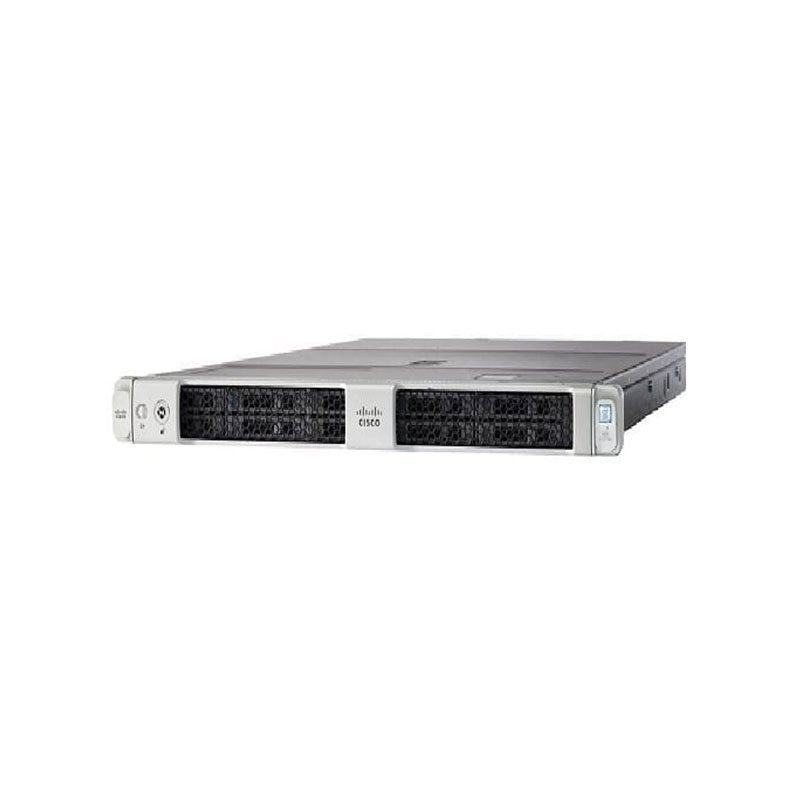

HX-UC-C220M5SX Cisco UCS C220 M5SX SFF Rack Server

HX-UC-C220M5SX Technical Specifications

Cisco UCS C220 M5SX SFF – rack-mountable

Bay Provided
Form Factor: 2.5″ SFF
Free Qty: 10
Total Qty: 10 Bays
Cache Memory
Installed Size: 44 MB
Per Processor Size: 22 MB
Card Reader
Supported Flash Memory Cards: SD Memory Card
Chassis
Form Factor: Rack-mountable
Front Accessible Bays Qty: 10 Bays
Hot-Swap Bays Qty: 10
Server Storage Bays: Hot swap
Server Swappable Drive Form Factor: 2.5″
Server Swappable Drive Interface: SATA/SAS
Dimensions & Weight
Depth: 29.8 in
Height: 1.7 in
Width: 16.9 in
Environmental Parameters
Humidity Range Operating: 10 – 90% (non-condensing)
Max Operating Temperature: 95 °F
Min Operating Temperature: 41 °F
Expansion Bays
Form Factor: 6.4 cm SFF
Type: Hot swap
Expansion Slots
Size: Half-length, half-height
Type: PCIe 3.0 x24
Header
Brand: Cisco
Model: C220 M5SX SFF
Packaged Quantity: 1
Interface Provided
Connector Type: DB-15, VGA, RJ-45, USB 3.0
Miscellaneous
Color Category: Silver
Height (Rack Units): 1U Rack Mount
Networking
Data Link Protocol: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller: Intel X550
Ethernet Ports: 2 x 10 Gigabit Ethernet
Features: Wake on LAN (WoL)
Remote Management Controller: Cisco Integrated Management Controller
