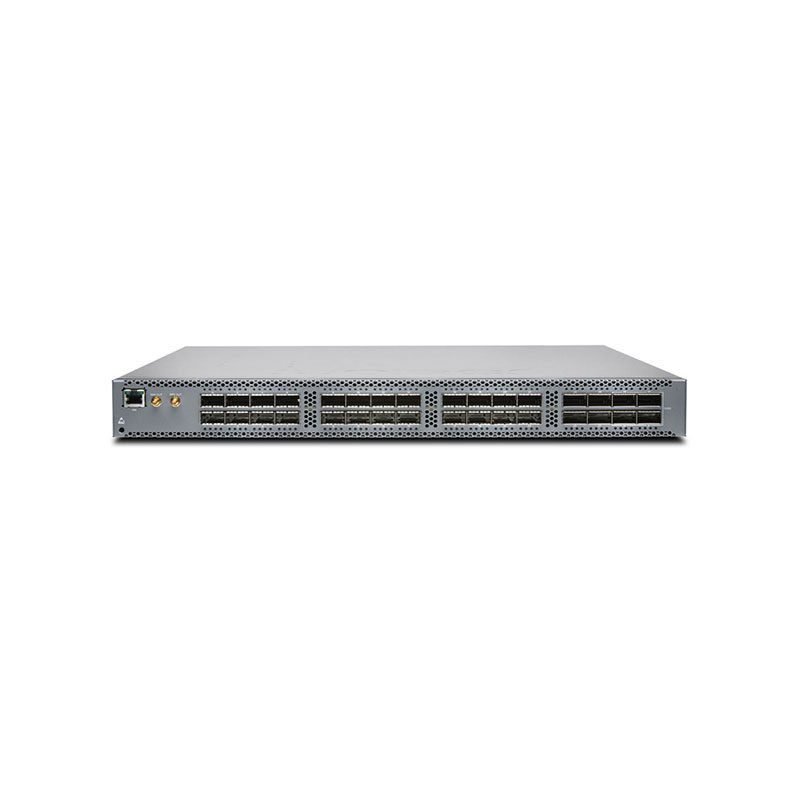

QFX5110-32Q-AFI Juniper Networks High-Performance Switch

QFX5110-32Q-AFI Technical Specifications

Juniper Networks QFX Series QFX5110-32Q Switch – 32 Managed Ports

Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks QFX Series
Model: QFX5110-32Q
Packaged Quantity: 1
Chassis
Airflow Direction: Back to front airflow
Built-in Devices: 64 GB SSD
Processor
Installed Quantity: 1
Manufacturer: Intel
Clock Speed: 1.8 GHz
RAM
Installed Size: 16 GB
Performance
Switching Capacity: 2.56 Tbps, Latency: 550 ns, Switching Rate: 1.44 Bpps
Capacity
IPv4 Routes (Unicast): 128,000; VLAN STP Instances: 253; LAG Groups: 104; Max Member Ports per LAG: 32; QoS Hardware Queues per Port: 12; Virtual Interfaces (VLANs): 4,093; IPv6 Routes (Unicast): 84,000; IPv4 Hosts: 208,000
Networking
Type: Switch
Subcategory: Network Hubs and Switches
Subtype: 40 Gigabit Ethernet
Form Factor: Rack-mountable
Ports Quantity: 32
Fibre Channel: FC-BB-5
Advanced Switching: Layer 3
Ports
Qty: 32, Type: 40 Gigabit QSFP+
Additional Ports: 4 x 100 Gigabit QSFP28
Power Device
Type: Internal Power Supply
Power Redundancy: Yes, Scheme: 1+1
Power Consumption: 340 watts
Dimensions & Weight
Width: 17.4 in, Depth: 20.5 in, Height: 1.7 in, Weight: 24.6 lbs
Environmental Parameters
Min Operating Temperature: 32°F, Max Operating Temperature: 104°F
Humidity Range Operating: 5 – 90% (non-condensing)
