QFX5210-64C-AFO Juniper Networks 64-Port Switch

QFX5210-64C-AFO Technical Specifications

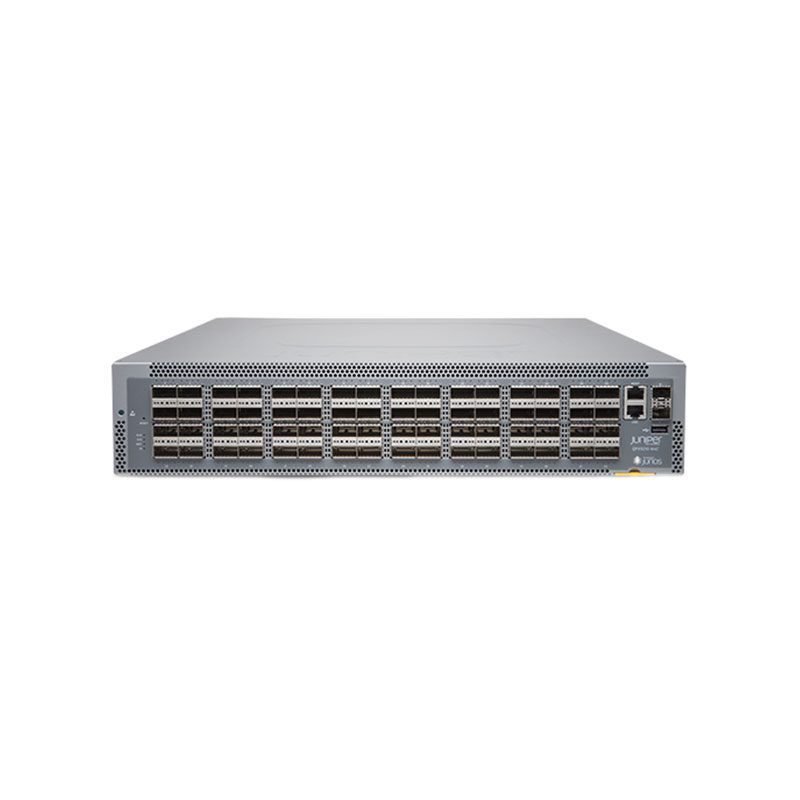

Juniper Networks QFX Series QFX5210-64C Switch with 64 Managed Ports

Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks QFX Series
Model: QFX5210-64C
Packaged Quantity: 1
Chassis
Airflow Direction: Front to back airflow
Built-in Devices: 100 GB SSD
Processor
Installed Qty: 1
Manufacturer: Intel
Clock Speed: 2.2 GHz
RAM
Technology: DDR4 SDRAM
Installed Size: 16 GB
Flash Memory
Installed Size: 100 GB
Performance
Forwarding Capacity: Up to 4.2 Bpps, Switching Throughput: Up to 12.8 Tbps
Capacity
IPv6 host table capacity: 102339, Maximum number of mirroring sessions: 4, VLAN IDs: 4096, and more.
Networking
Type: Switch
Ports Qty: 64
Routing Protocols: GRE, BGP, OSPF, and more.
Ports
Qty: 64
Type: 100 Gigabit QSFP28 / 40 Gigabit QSFP+
Software
Type: Junos OS
Power Device
Type: Internal power supply, 850 watt, 80 PLUS Silver
Dimensions & Weight
Width: 17.3 inch, Depth: 24.1 inch, Height: 3.5 inch, Weight: 31.08 lbs
Environmental Parameters
Operating Temperature: 32°F to 104°F, Storage Temperature: -40°F to 158°F.
