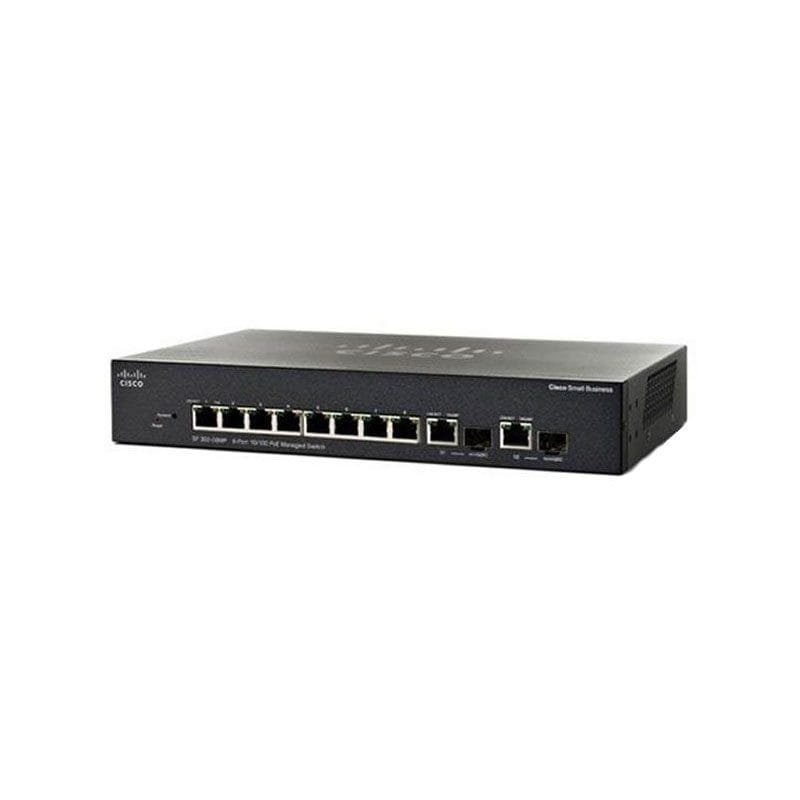

SF352-08-K9-NA Cisco SF352-08 Managed 8-Port Switch

SF352-08-K9-NA Technical Specifications

Cisco Small Business SF352-08 – 8 Port Managed Switch

Cable Details
Included Qty: 1
Capacity
Type: Active VLANs
Value: 4096
Flash Memory
Installed Size: 256 MB
Performance
Type: Forwarding performance (64-byte packet size)
Value: 4.17 Mpps
Type: Switching capacity
Value: 5.6 Gbps
Ports
Qty: 8
Type: 10/100
Ports (2nd)
Qty: 2
Type: Combo Gigabit Ethernet/Gigabit SFP
RAM
Installed Size: 512 MB
Cable
Connectivity Details Type: Console cable
Connectivity Details Type: Power cable
Environmental Parameters
Humidity Range Operating: 10 – 90% (non-condensing)
Humidity Range Storage: 10 – 90% (non-condensing)
Max Operating Temperature: 122 °F
Max Storage Temperature: 158 °F
Min Operating Temperature: 32 °F
Min Storage Temperature: -4 °F
Header
Brand: Cisco
Country Kits: North America
Manufacturer: Cisco Systems
Model: SF352-08
Packaged Quantity: 1
Product Line: Cisco Small Business
Interface Provided
Comments: Management
Qty: 1
Type: Console
Connector Type: RJ-45
Qty: 8
Type: 100Base-TX
Connector Type: RJ-45/SFP
Qty: 2
Type: 1000Base-T
Type: USB
Miscellaneous
Authentication Method: RADIUS, Secure Shell (SSH), TACACS+
Color Category: Black
Compliant Standards: CSA 22.2, FCC Part 15 A, UL 60950
Encryption Algorithm: SSL
Height (Rack Units): 1
MTBF: 532,704 hours
Networking
Advanced Switching: Layer 3
Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features: 1.5MB packet buffer, Access Control List (ACL) support, Broadcast Storm Control, DHCP support, DiffServ support, DoS attack prevention, Fanless, Firmware upgradable, IGMP snooping, IPv6 support, Jumbo Frames support, Layer 2 switching, Layer 3 switching, MLD snooping, Multicast Storm Control, Port mirroring, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, Syslog support, Trivial File Transfer Protocol (TFTP) support, Unicast Storm Control, VLAN support, Weighted Round Robin (WRR) queuing
Form Factor: Desktop
Jumbo Frame Support: 9216 bytes
MAC Address Table Size: 16K entries
Manageable: Yes
Ports Qty: 8
Remote Management Protocol: CLI, HTTP, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Routing Protocol: CIDR, Static IPv4 routing
Status Indicators: Link/activity
Subcategory: Network hubs and switches
Subtype: Fast Ethernet
Type: Switch
Power Device
Frequency Required: 50/60 Hz
Nominal Voltage: AC 120/230 V
Output Current: 2 A
Type: External power adapter
Dimensions & Weight
Depth: 6.7 in
Height: 1.7 in
Weight: 2.34 lbs
Width: 11 in
