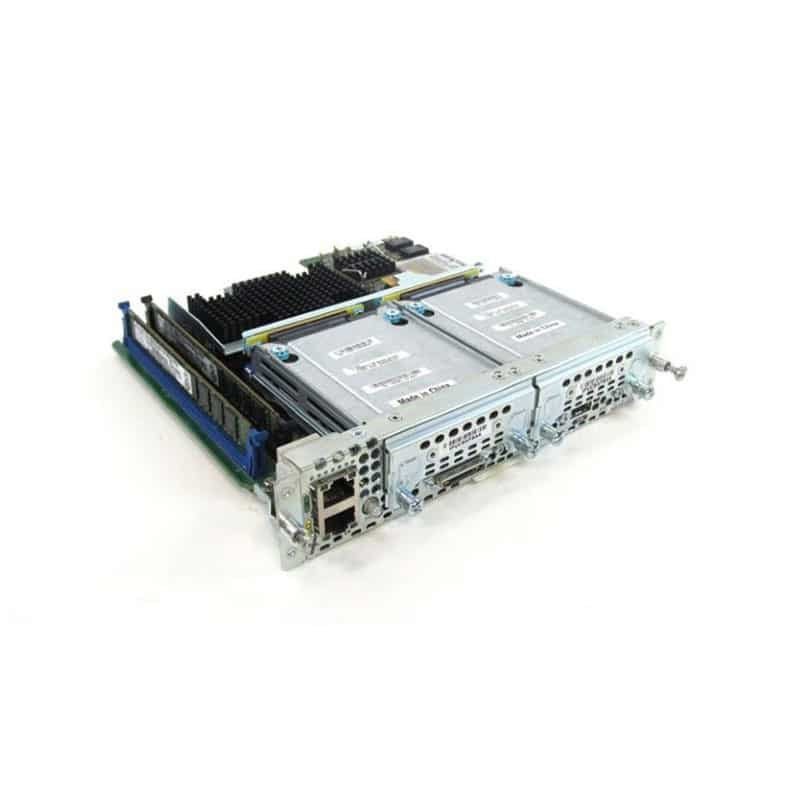

UCS-E140S-M2/K9 Cisco UCS E140S M2 Blade Server – Intel Xeon E3-1105CV2

UCS-E140S-M2/K9 Technical Specifications

Cisco UCS E140S M2 – Blade with Xeon E3-1105CV2 1.8 GHz

Audio Input
Type: None
Audio Output Details
Speaker Type: None
Bay Provided
Form Factor: 2.5″
Free Qty: 2
Total Qty: 2 Bays
Cache Memory
Installed Size: 8 MB
Type: L3 cache
Chassis
Form Factor: Blade
Hot-Swap Bays Qty: 2
Manufacturer Form Factor: Blade Server
Server Storage Bays: Hot swap
Server Swappable Drive Interface: SAS
Dimensions & Weight
Depth: 7.5 in
Height: 1.6 in
Weight: 2.43 lbs
Width: 7.4 in
Environmental Parameters
Humidity Range Operating: 5 – 95%
Max Operating Temperature: 104 °F
Min Operating Temperature: 32 °F
Expansion Bays
Type: Hot-swap
Expansion Slots
Type: CPU, Memory
Hard Drive
Type: No HDD
Header
Brand: Cisco
Manufacturer: CISCO DS HARDWARE DIRECT
Model: E140S M2
Product Line: Cisco UCS
Interface Provided
Type: KVM, LAN (Gigabit Ethernet), Management (NIC), USB 2.0
Miscellaneous
Color Category: Gray
Compliant Standards: AS/NZS 60950-1, FCC CFR47 Part 15, UL 60950-1
Networking
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Optical Storage
Drive Type: No optical drive
Printer
Type: None
Processor
Clock Speed: 1.8 GHz
Installed Qty: 1
Number of Cores: Quad-Core
Processor Number: E3-1105CV2
RAM
Installed Size: 8 GB
Max Supported Size: 16 GB
Technology: DDR3 SDRAM
