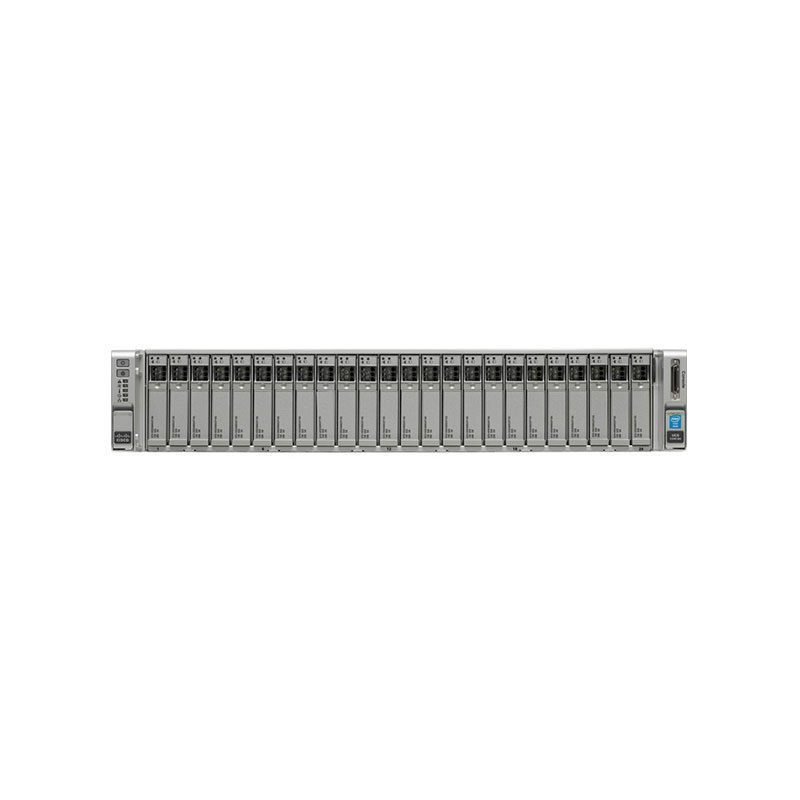

UCS-SP-C240M4-B-S2 Cisco UCS SmartPlay Select C240 M4SX Rack Server

UCS-SP-C240M4-B-S2 Technical Specifications

Cisco UCS SmartPlay Select C240 M4SX Standard

Bay Provided
Form Factor: 2.5″ SFF
Free Qty: 16
Total Qty: 24 Bays
Cabinet
Chassis Built-in Devices: Backplane
Cable
Connectivity Details Type: Keyboard / mouse / video cable
Cache Memory
Installed Size: 40 MB
Per Processor Size: 20 MB
Type: L3 cache
Chassis
Form Factor: Rack-mountable
Hot-Swap Bays Qty: 24
Server Swappable Drive Form Factor: 2.5″ (6.4 cm)
Server Swappable Drive Interface: SATA/SAS
Dimensions & Weight
Depth: 29.1 in
Height: 3.4 in
Width: 17.6 in
Environmental Parameters
Humidity Range Operating: 10 – 90% (non-condensing)
Max Operating Temperature: 95 °F
Min Operating Temperature: 41 °F
Expansion Bays
Form Factor (metric): 6.4 cm SFF
Type: Hot-swap
Networking
Data Link Protocol: 10Gb Fibre Channel over Ethernet (FCoE), Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Ports: 2 x Gigabit Ethernet, 2 x SFP+
Processor
Clock Speed: 2.1 GHz
Installed Qty: 2
Processor Number: E5-2620V4
Max Turbo Speed: 3 GHz
Number of Cores: 8-core
Server Scalability: 2-way
Type: Xeon
RAM
Installed Size: 128 GB
Max Supported Size: 768 GB
Memory Speed: 2400 MHz
Slots Qty: 24 DDR4 Slots
Technology: DDR4 SDRAM
