100G-CFP2-LR4-10KM Technical Specification

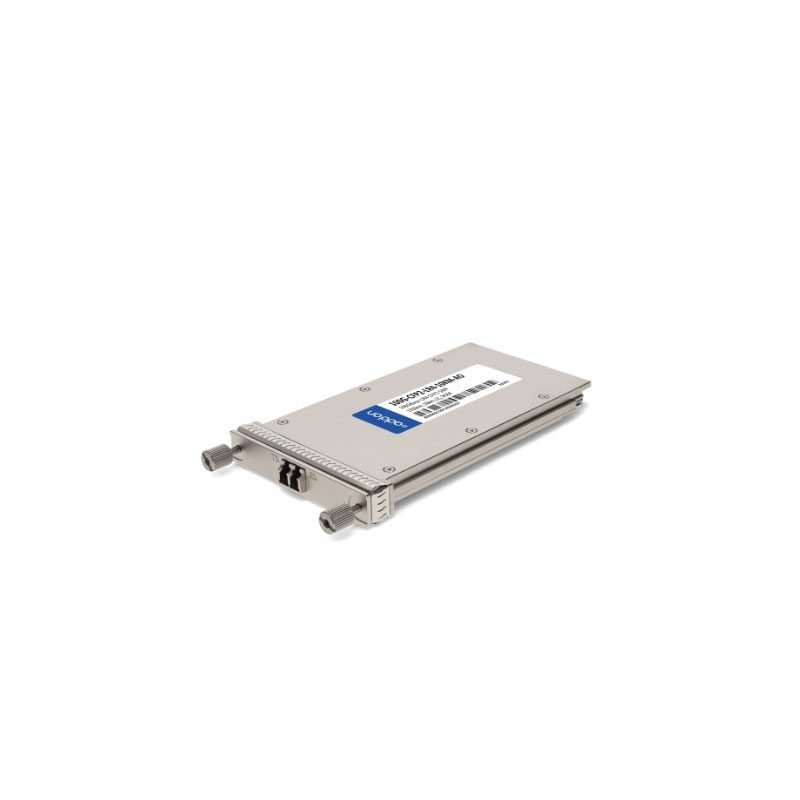

Brocade 100G CFP2 Module
Brand: Brocade
Media Type: Double Fiber Single-Mode Fiber (SMF)
TX Wavelength: 1310 nm
RX Wavelength: 1310 nm
Minimum Optical Budget: 6.3 dB
Maximum Distance: 10km
Supported Data Rate: 103.125 to 112.2 Gbps
Supported Applications: 100G Ethernet (103.125Gbps), OTU4 (112Gbps)
DDM/DOM: Supported
Temperature Range: Standard 0°-70°C
Connectors: Double LC
Minimum Transmitting Power: Each Lane -4.3 dBm
Maximum Transmitting Power: Each Lane 4.5 dBm
Receiver Sensitivity: Each Lane -10.6 dBm
Receiver Overload: Each Lane 4.5 dBm
Transmitter Type: EML Laser
This module is designed for high-performance networking, supporting a range of applications and ensuring reliable data transmission over long distances.
