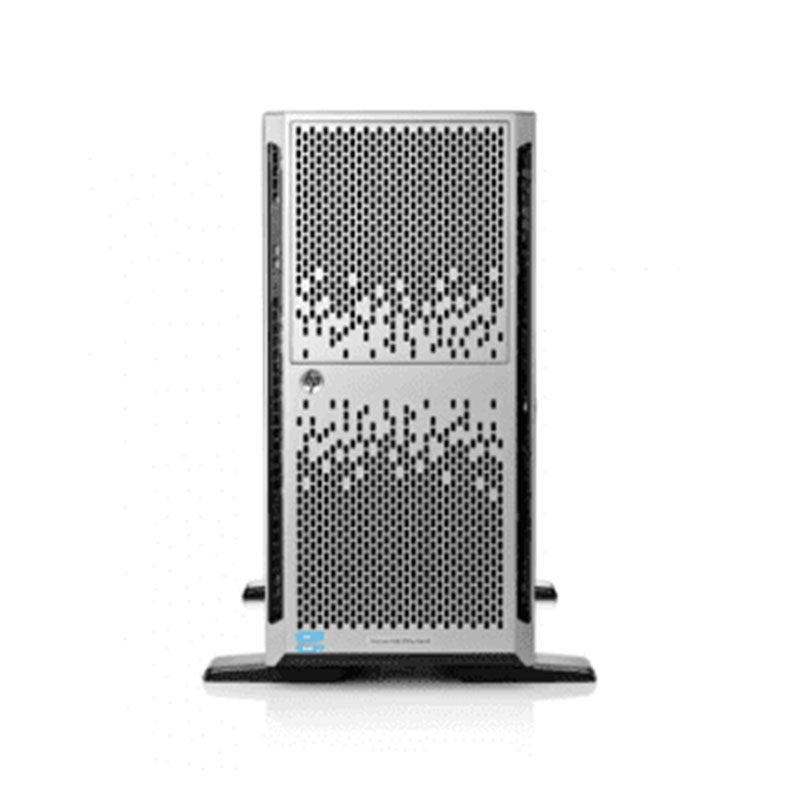

652066-B21 HP ML350P G8 CTO Tower Chassis LFF Server

652066-B21 Technical Specifications

HP ML350P G8 CTO Tower Chassis LFF

GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 652066-B21
Product Name: Proliant ML350P G8 5U Tower Server CTO
PROCESSOR & CHIPSET:
Processor Type: Intel E5-2600 Processor Family
Installed Qty: No CPU
Max Supported Qty: 2
Upgradability: Upgradable
Chipset Type: Intel C600
MEMORY:
Installed Size: None
Maximum Size: 768 GB (24 x 32GB LRDIMM @1066MHz)
Technology: DDR3 SDRAM
Form Factor: DIMM 240-Pin
Memory Slots: 24 DDR3 Slots
Features: Quad Channel Memory Architecture, HP SmartMemory
STORAGE & STORAGE CONTROLLER:
Hard Drive: None, Six Hot-Plug (LFF) SAS/SATA Drive Bays
Storage Controller Type: 1 x RAID – Plug-In Card – PCI Express 3.0 x8
Controller Interface Type: Serial ATA-300 / SAS 2.0
Storage Controller Name: Smart Array P420i
Raid Level: RAID 0, RAID 1, RAID 1
NETWORK & COMMUNICATION:
Networking: Integrated Network Adapter
Ethernet Ports: 4 x Gigabit Ethernet
Ethernet Controller: 1GB Ethernet 4-Port 331i Adapter
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol: IPMI 2.0, SMASH CLP
Remote Management Controller: Integrated Lights-Out 4
Features: Wake On LAN (WOL), PXE Support
POWER DEVICE:
Device Type: Hot Plug Power Supply
Power Redundancy: Optional
Voltage Required: AC 120/230 V (50/60 Hz)
