752686-B21 HP Proliant DL380 G9 Entry Model with 1x Intel Xeon

752686-B21 Technical Specifications

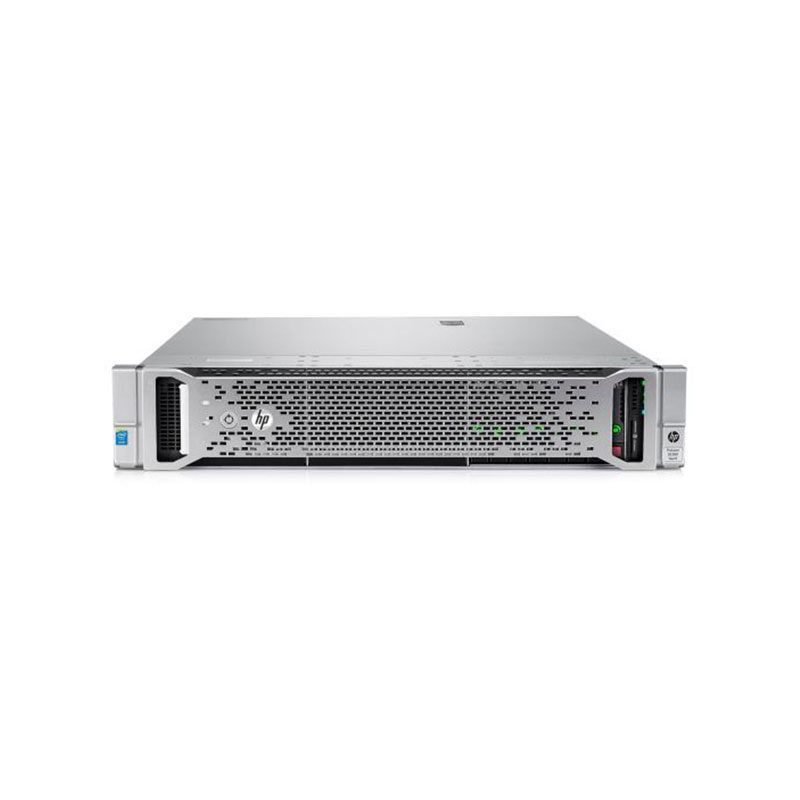

HP Proliant DL380 G9 Entry Model with Intel Xeon E5-2609v3/1.90GHz

GENERAL INFORMATION:

• Manufacturer: Hewlett Packard
• Manufacturer Part Number: 752686-B21
• Product Name: Proliant DL380 Gen9 2U Rack Mount (Entry Model)

PROCESSOR & CHIPSET:

• Processor Type: Intel Xeon E5-2609v3 at 1.9GHz
• Multi-Core Technology: Hexa-Core (6 cores)
• Installed Quantity: 1
• Max Supported Quantity: 2
• Upgrade Capability: Yes
• 64-Bit Computing: Supported
• Chipset Model: Intel C610

CACHE MEMORY:

• Installed Size: L3 Cache – 15 MB
• Cache Per Processor: 15 MB

RAM:

• Installed Size: 8GB
• Max Supported Size: 384GB
• RAM Technology: DDR4 SDRAM
• Memory Speed: 1600 MHz
• Form Factor: DIMM 288-Pin
• Memory Slots: 24 x DDR4 RAM Slots
• Features: Registered, HP SmartMemory
• Configuration Features: 1 x 8GB

STORAGE & STORAGE CONTROLLER:

• Hard Drive: None
• Type: 1x RAID – Integrated
• Controller Interface Type: SATA 6GB/s
• Storage Controller Name: HP Dynamic Smart Array B140i
• Channel Quantity: 10
• RAID Level: RAID 0, RAID 1, RAID 5, RAID 10

DISPLAY & GRAPHICS CONTROLLER:

• Graphics Controller Type: Integrated
• Graphics Processor: Matrox G200eh2
• Video Interfaces: VGA

NETWORKING:

• Type: Integrated
• Interface (Bus) Type: PCI Express X2
• Ethernet Ports: 4x Gigabit Ethernet
• Ethernet Controller: HP 331i
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WOL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
