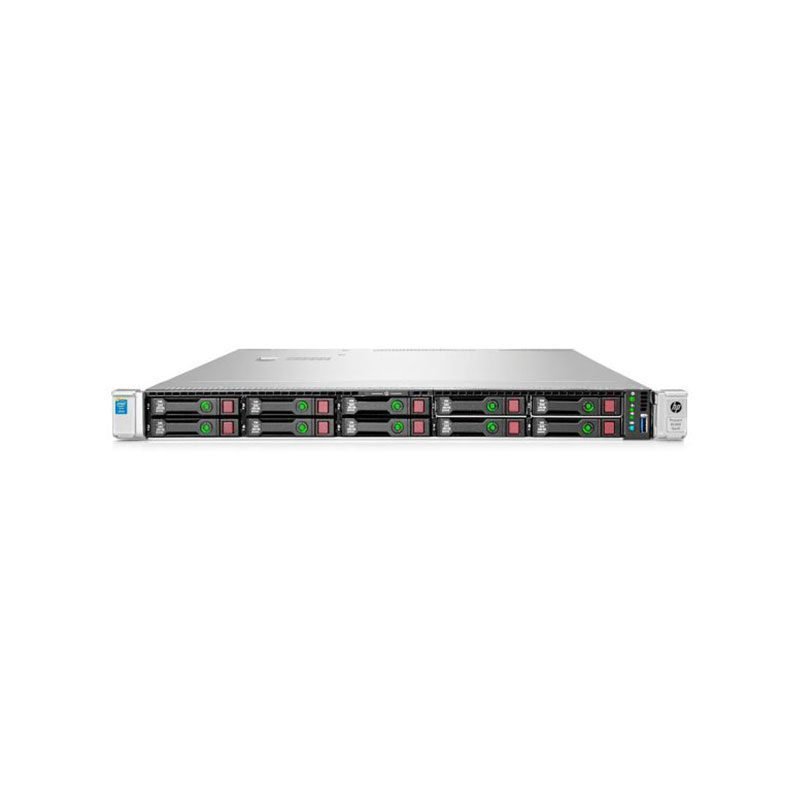

777394-B21 HP Proliant DL60 G9 1U Rack Server with Intel Xeon 6-Core

777394-B21 Technical Specifications

HP Proliant DL60 G9 Entry Model with Intel Xeon E5-2603V3

GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 777394-B21
Product Name: Proliant DL60 Gen9 – 1U Rack Mount (Entry Model)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2603v3, 1.6GHz
Quickpath Interconnect: 6.4 GT/s
Number of Cores: 6
64-Bit Computing: Yes
Compatible Processor Socket: FCLGA2011-3
Installed Quantity: 1
Max Supported Quantity: 2
Chipset Type: Intel C610 Series
CACHE MEMORY:
Cache Memory Type: Smart Cache
Installed Size: 15MB
Cache Per Processor: 15MB
MEMORY:
Installed Size: 4GB (1x4GB) / Max: 128GB
Technology: DDR4 SDRAM PC4-17000R (DDR4-1600)
Form Factor: DIMM 288-Pin
Total Memory Slots: 8 x DDR4 RAM Slots
RAM Supported: 128GB – Registered, 256GB – Load-Reduced
STORAGE:
Hard Drive: None
Optical Drive: None
STORAGE CONTROLLERS:
Storage Controller Name: Smart Array B140i
Buffer Size: None
Disk Drive: Up to 6GB/s SATA (Serial ATA)
Connectors: 10 Internal SATA Connectors
Server Interface: X4 PCIe 2.0
SATA Speed: 6GB/s SATA Links
Logical Drives Supported: Up to 8 Logical Volumes (6 Physical Drives)
RAID Support: RAID 0, 1, 5, 10, 50
GRAPHICS CONTROLLER:
Type: Integrated
Graphics Processor: Matrox G200eh2
Video Interfaces: VGA
NETWORK & COMMUNICATION:
Ethernet Controller: HP Ethernet 1GB 2-Port 361i Adapter
Network Interface: 10Base-T/100Base-TX/1000Base-TX
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 4
Connector: RJ-45 (Two)
POWER DESCRIPTION:
Device Type: Flex Slot Platinum Plus Power Supply
Installed Quantity: 1
Nominal Voltage: AC 120/230V (50/60Hz)
Power Provided: 550 Watts.
