AFBR-703SDZ-IN2 Technical Specifications

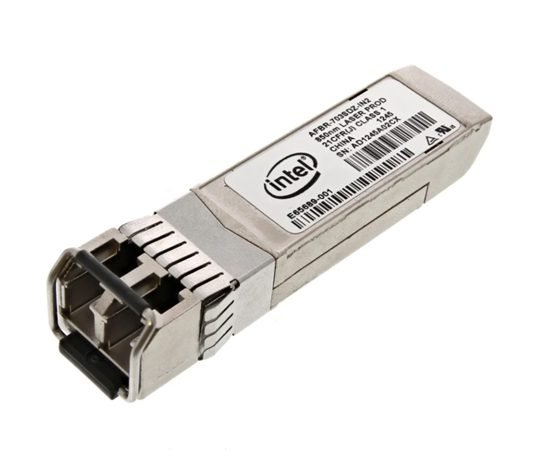

Intel Duplex LC Connector SFP+ Transceiver Module
The Intel AFBR-703SDZ-IN2 is a high-performance SFP+ transceiver module featuring a duplex LC connector. It operates seamlessly in optical networking environments, supporting 10 Gigabit Ethernet technology. This module is equipped with one LC Duplex 10GBase-SR network interface and is designed for use with multimode fiber (MMF).
Key technical specifications include a hot-pluggable form factor, an 850nm TX wavelength, and a reach of up to 300 meters. The module is environmentally friendly and certified under RoHS standards. It operates under commercial temperature conditions and has a power budget of 5.1dB. The TX power ranges between -6.00 to -1.00 dBm, while the RX power ranges from -11.1 to -1.00 dBm. Additionally, it supports Digital Diagnostics Monitoring (DDM) and has a dual-LC connector type.
