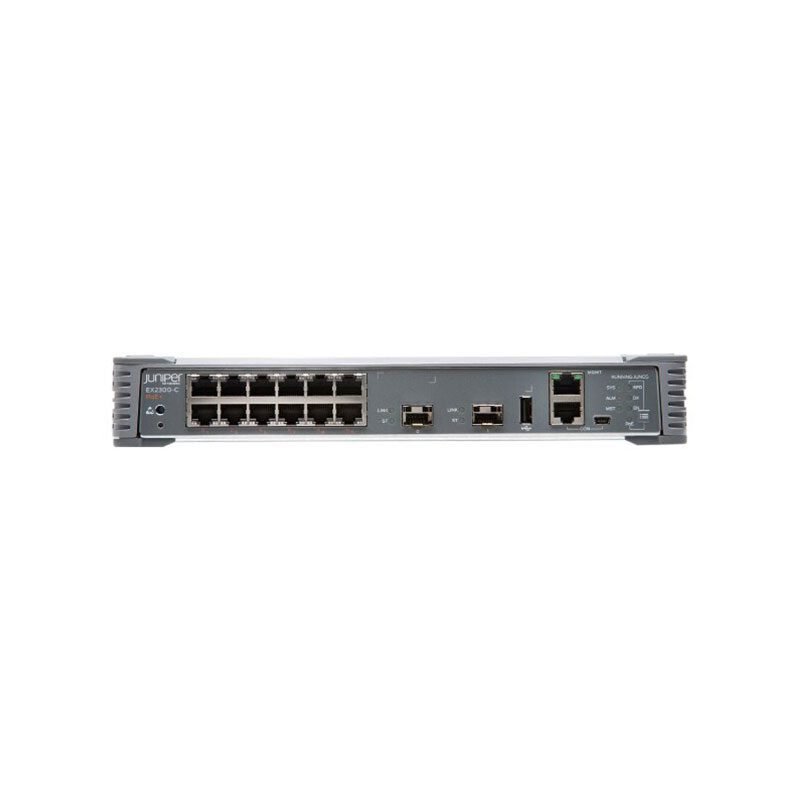

B-EX2300-C12P-3S-E Juniper Networks EX2300-C 12-Port Switch

B-EX2300-C12P-3S-E Technical Specifications

Juniper Networks EX Series EX2300-C-12P Switch – 12 Ports Managed Rack Mountable

Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks EX Series
Model: EX2300-C-12P
Kit: E-Rate Bundle
Packaged Quantity: 1
Processor
Installed Qty: 1
Manufacturer: ARM
Clock Speed: 1.25 GHz
RAM
Installed Size: 2 GB
Flash Memory
Installed Size: 2 GB
Performance
Switching Capacity: 64 Gbps, Throughput: 47 Mpps
Capacity
IPv4 routes (Unicast): 512, IPv4 hosts: 4096, IPv4 routes (Multicast): 2048, Maximum neighboring networks: 750, IPv6 routes (Unicast): 128, LAG groups: 128, QoS hardware queues per port: 8, IGMP snooping entries: 1000, Multiple Spanning Tree Protocol instances: 64, IPv6 routes (Multicast): 1024, IPv6 hosts: 2048, VLANs: 2048, ARP entries: 1024, Maximum member ports per LAG: 8
Networking
Type: Switch
Subcategory: Network hubs and switches
Subtype: Gigabit Ethernet
Form Factor: Rack-mountable
Ports Qty: 12
Advanced Switching: Layer 3
Routing Protocol: Static IPv4 routing, OSPFv3, RIP-2, RIP-1, RIPng, CIDR, Static IPv6 routing
MAC Address Table Size: 16000 entries
Jumbo Frame Support: 9216 bytes
Manageable: Yes
Remote Management Protocol: RMON 3, HTTP, TFTP, CLI, RMON 9, SNMP 3, SNMP 2c, SNMP, RMON 2, SSH, SNMP 1, RMON 1, HTTPS, Telnet
Power Over Ethernet (PoE): PoE+
PoE Budget: 124 watt
Features
Includes Spanning Tree Protocol (STP) support, Cable Diagnostics Function, DHCP client, sFlow, Secure Copy (SCP), and more. Compliant with various IEEE standards including 802.1Q, 802.3af, and 802.3at.
Ports
Qty: 12, Type: 10/100/1000 (PoE+)
Ports (2nd)
Qty: 2, Type: Gigabit SFP / 10 Gigabit SFP+
Power Device
Type: Internal power supply
Power Provided: 170 watt
Power Consumption Operational: 24 watt
Dimensions & Weight
Width: 11 inch, Depth: 9.4 inch, Height: 1.7 inch, Weight: 6.99 lbs
Environmental Parameters
Min Operating Temperature: 32°F, Max Operating Temperature: 104°F, Min Storage Temperature: -40°F, Max Storage Temperature: 158°F, Humidity Range Operating: 10 – 85% (non-condensing), Humidity Range Storage: 0 – 95% (non-condensing).
