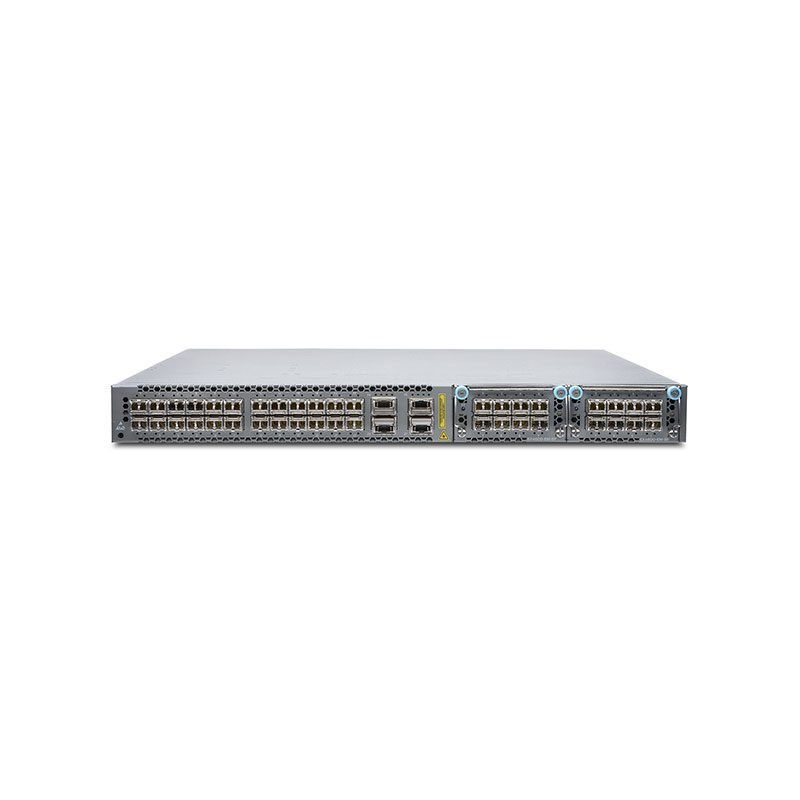

B-EX4600-40FO Juniper Networks EX4600 Ethernet Switch

B-EX4600-40FO Technical Specifications

Juniper Networks EX Series EX4600 Switch with 24 Managed Ports

Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks EX Series
Model: EX4600
Kit: E-Rate Bundle
Packaged Quantity: 1
Chassis
Airflow Direction: Front to back airflow
Performance
Switching Capacity: 1.07 Bpps, 1.44 Tbps
Capacity
VLAN instances: 253, QoS queues per port: 12, Host entries: 128,000, Firewall policies: 4,000, IPv6 routes: 64,000, Maximum LAG ports: 32, IPv4 routes: 128,000, ECMP ways: 64, VLANs: 4,096, MSTP instances: 64, IPv6 multicast routes: 52,000, ARP entries: 48,000, IPv4 multicast routes: 104,000, IPv4 hosts: 208,000.
Networking
Type: Switch
Subcategory: Network hubs and switches
Subtype: 10 Gigabit Ethernet
Form Factor: Rack-mountable
Ports Quantity: 24
Fibre Channel: FC-BB-6
Advanced Switching: Layer 3
Routing Protocols: MPLS, OSPF, BGP, and more. Manageable: Yes
Remote Management: SSH, SNMP, CLI, and others. Power Device: Internal power supply with redundancy. Dimensions: 17.4″ W x 20.5″ D x 1.7″ H, Weight: 21.69 lbs. Environmental: Operating temperature: 32°F to 104°F.
