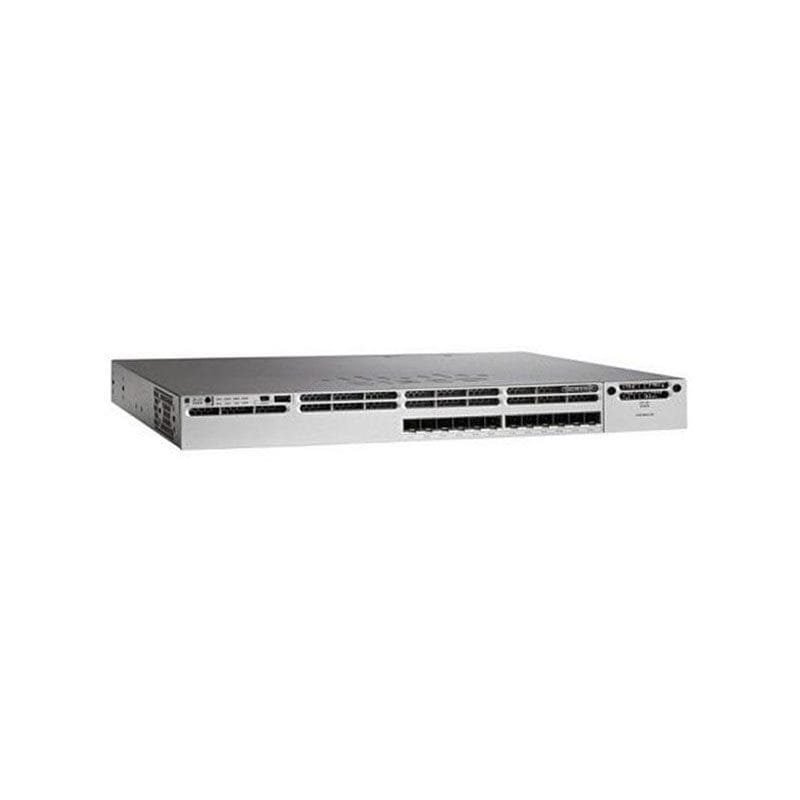

C1-WS3850-12S/K9, Cisco Catalyst 3850-12S L3 Managed Switch

C1-WS3850-12S/K9 Technical Specifications

Cisco ONE Catalyst 3850-12S Managed L3 Switch with 12 Gigabit SFP Ports

General Information
Product Line: Cisco ONE Catalyst
Product Series: C1-WS3850
Manufacturer: Cisco Systems, Inc.
Part Number: C1-WS3850-12S/K9
Brand: Cisco
Device Type: Managed Switch – 12 Ports – L3 – Stackable
Enclosure: Desktop, Rack-Mountable 1U
Subtype: Gigabit Ethernet
Ports: 12 x Gigabit SFP
Performance: Switching Capacity: 68 Gbps | Stacking Bandwidth: 480 Gbps | Forwarding Performance: 50.5 Mpps
Capacity: IPv4 Routes: 24000 | NetFlow Entries: 24000 | SVIs: 1000
MAC Address Table: 32000 Entries
Jumbo Frame Support: 9198 Bytes
Management Protocols: SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Authentication: Kerberos, SSH, RADIUS, TACACS+
Compliant Standards: IEEE 802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.1p, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s
RAM: 4 GB
Flash Memory: 2 GB
Status Indicators: Port Speed, Duplex Mode, System Status, PoE
Expansion / Connectivity
Interfaces: 12 x 1000Base-X – SFP | 1 x USB – Type A | 1 x Management (Mini-USB) – Type B | 1 x Serial (RS-232) – RJ-45 | 1 x Management (Gigabit LAN) – RJ-45 | 2 x Network Stack Device
Expansion Slots: 1 (total) / 1 (free) x Stacking Module Slot
Software / System Requirements
Software Included: Cisco IOS Universal
Environmental Parameters
Max Operating Temperature: 113 °F
Humidity Range: Operating 10 – 95% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Power
Power Device: Internal Power Supply
Installed Qty: 1 (installed) / 2 (max)
Power Redundancy: Optional
Redundancy Scheme: 1+1 (with optional power supply)
Power Provided: 350 Watt
Voltage Required: AC 120/230 V (50/60 Hz)
