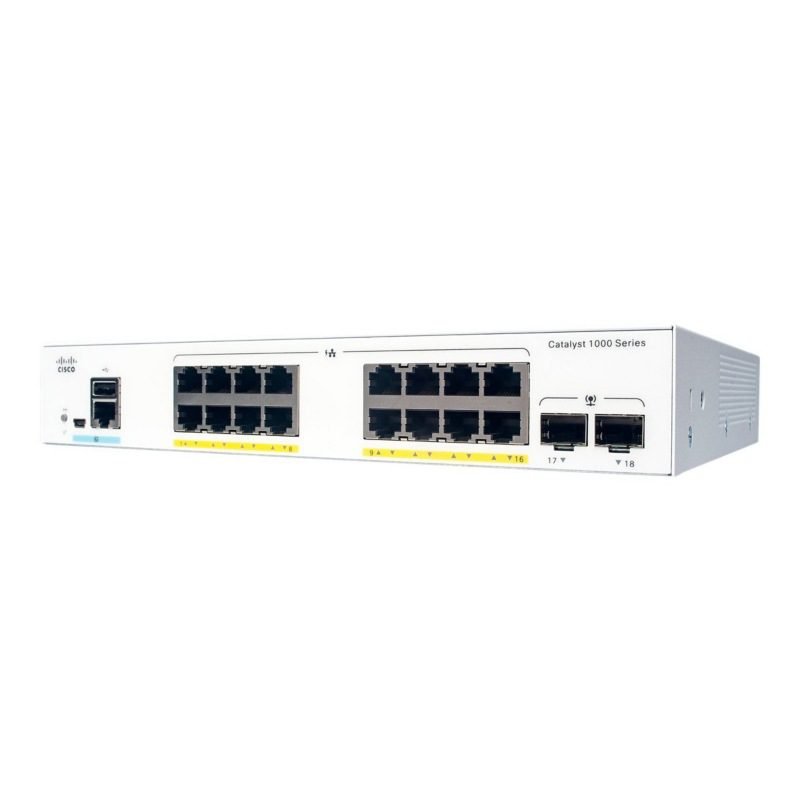

C1000-16FP-2G-L Cisco Catalyst 1000 Series 16-Port PoE Switch

C1000-16FP-2G-L Technical Specifications

Cisco Catalyst 1000 Series 16-Port GE PoE+240W with 2 SFP Uplinks

Product Line: Cisco Catalyst
Product Series: C1000
Hardware Specifications:
This 16-port network switch includes 16x 10/100/1000 Ethernet PoE+ ports and supports a total PoE budget of 240W, with the flexibility of 2 SFP uplinks. Console connectivity is provided through 1x RJ-45 Ethernet, along with USB mini-B and USB-A ports for storage and Bluetooth console access. Indicator LEDs show port status and system health.
Dimensions: 10.56 x 12.14 x 1.73 inches
Weight: 2.49 lbs
Memory and Processor:
CPU: ARM v7 800 MHz
DRAM: 512 MB
Flash Memory: 256 MB
Performance Metrics:
Forwarding bandwidth: 18 Gbps
Switching bandwidth: 36 Gbps
Forwarding rate (64-byte L3 packets): 26.78 Mpps
Unicast MAC addresses: 15,360
IPv4 unicast direct routes: 542
IPv6 unicast direct routes: 414
IPv4 static routes: 16
IPv4 multicast routes and IGMP groups: 1024
IPv6 multicast groups: 1024
IPv4 / MAC security ACEs: 600.
