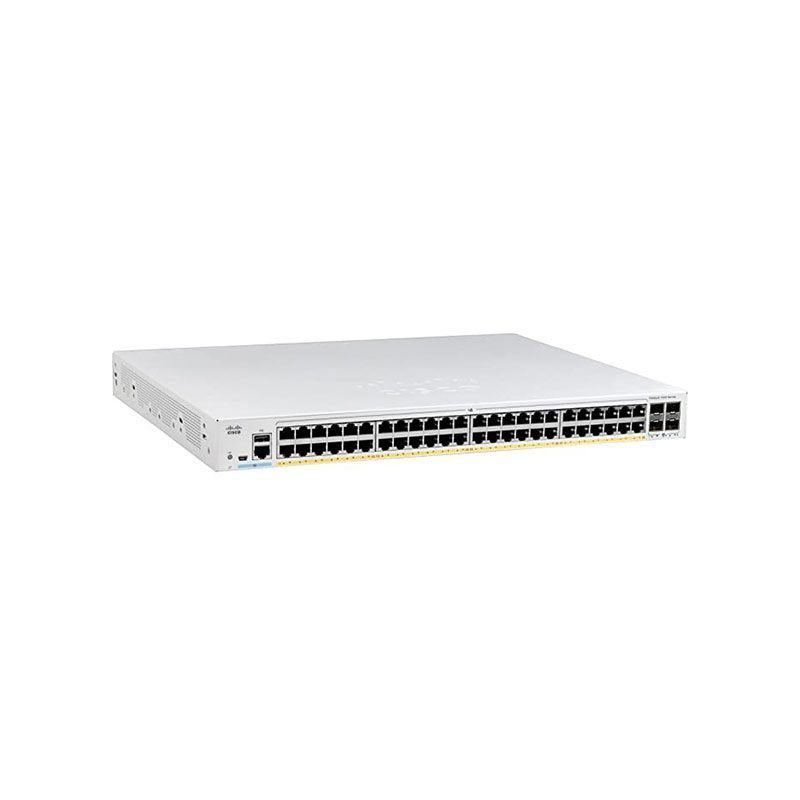

C1000-48P-4X-L Cisco Catalyst 1000 48-Port Switch

C1000-48P-4X-L Technical Specifications

Cisco Catalyst 1000 48-Port Switch

Product Line: Cisco Catalyst
Product Series: C1000
Hardware
This network switch includes 48 ports for 10/100/1000 Ethernet and 4 SFP uplink ports. It supports a PoE power budget of 370W, with 30W available per port for up to 12 ports or 15W for 24 ports.
Console ports include:
– 1x RJ-45 Ethernet
– USB mini-B
– USB-A port for storage and Bluetooth console
Indicator LEDs provide per-port status for link integrity, activity, and system status.
Dimensions: 17.5 x 10.73 x 1.73 inches
Weight: 3.95 lbs
Memory and Processor
CPU: ARM v7 800 MHz
DRAM: 512 MB
Flash Memory: 256 MB
Performance
The switch boasts a forwarding bandwidth of 88 Gbps and a switching bandwidth of 176 Gbps. It achieves a forwarding rate of 77.38 Mpps for 64-byte L3 packets, supporting up to 15,360 unicast MAC addresses. Additionally, it allows for various IPv4 and IPv6 static and dynamic routes.
