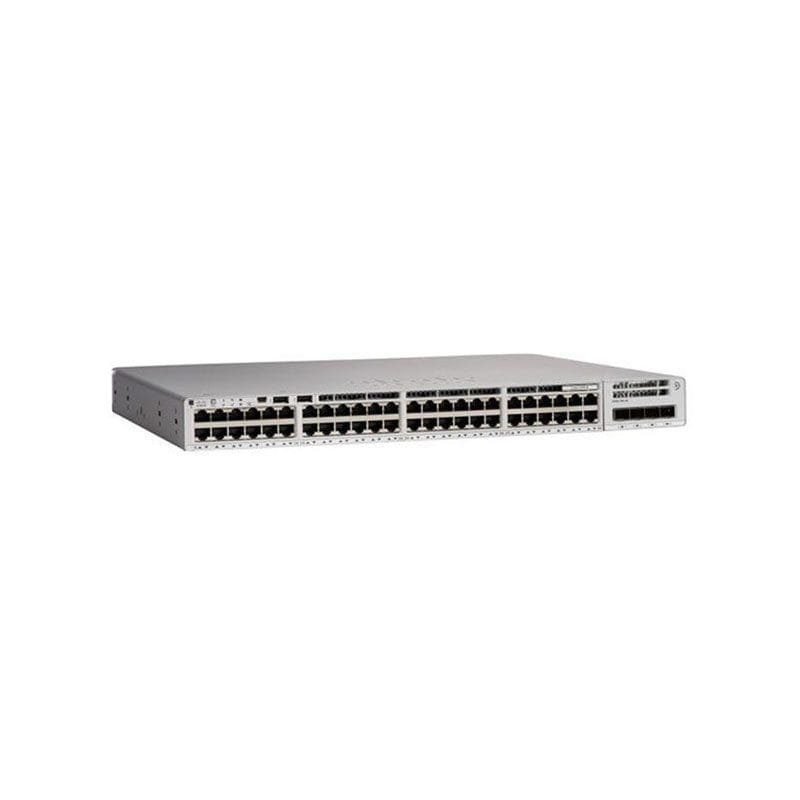

C9200-48T-E++ Cisco Catalyst 9200 Network Essentials Switch – 48 Port Managed

C9200-48T-E++ Technical Specifications

Cisco Catalyst 9200 Network Essentials Switch 48 Port Managed

Environmental Parameters
Operating Humidity: 5 – 90% (non-condensing)
Storage Humidity: 5 – 90% (non-condensing)
Maximum Operating Temperature: 113 °F
Maximum Storage Temperature: 158 °F
Minimum Operating Temperature: 23 °F
Minimum Storage Temperature: -40 °F
Header
Brand: Cisco
Edition: Network Essentials
Manufacturer: CISCO DS HARDWARE DIRECT
Model: 9200
Packaged Quantity: 1
Product Line: Cisco Catalyst
Interface Provided
Connector Type: RJ-45
Quantity: 48
Type: 10/100/1000 Base-T
Type: Network stack device
Type: Console
Type: Management (LAN)
Miscellaneous
Color Category: Gray
Compliant Standards: AS/NZS 3548 Class A, AS/NZS 60950-1, BSMI Class A, and more.
Encryption Algorithm: 128-bit AES
MTBF: 571,440 hours
TAA Compliant: Yes
Networking
Advanced Switching: Layer 3
Compliant Standards: IEEE protocols including 802.1ab, 802.1D, and more.
Features: ARP support, Cisco StackWise-160, QoS, and more.
Form Factor: Rack-mountable
Jumbo Frame Support: 9198 bytes
Manageable: Yes
Ports Quantity: 48
Power Device
Frequency Required: 50-60 Hz
Hot-Plug: Yes
Max Supported Quantity: 2
Nominal Voltage: AC 120/230 V
Power Provided: 125 Watt
Dimensions & Weight
Depth: 13.8 in
Height: 1.7 in
Weight: 11.02 lbs
Width: 17.5 in
Performance
Forwarding Rate: 130.95 Mpps
Stacking Bandwidth: 336 Gbps
Switching Bandwidth: 176 Gbps
Ports
Quantity: 48
Type: 10/100/1000
RAM
Installed Size: 4 GB
Flash Memory
Installed Size: 4 GB
