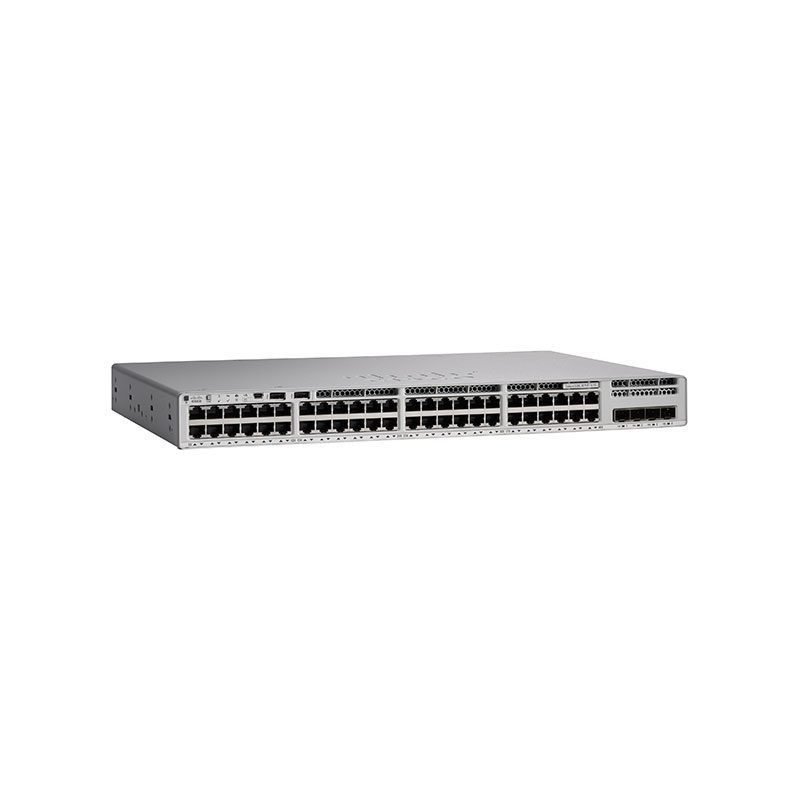

C9200L-48PXG-2Y-E Cisco Catalyst 9200L 48-Port Switch

C9200L-48PXG-2Y-E Technical Specifications

Cisco Catalyst 9200L 48-Port Network Essentials Switch

Capacity

• ACL Scale Entries: 16,000
• FNF Entries: 16,000
• IPv4 Routes: 11,000
• IPv4 Routing Table Entries: 3,000
• IPv6 Routing Table Entries: 1,500
• Multicast Scale: 1,000
• Packet Buffer Size: 6 MB
• QoS Hardware Queues per Port: 8
• Switched Virtual Interfaces (SVIs): 512
• Supported VLANs: 1,024

Dimensions & Weight

• Depth: 13.8 in
• Height: 1.7 in
• Width: 17.5 in
• Weight: 12.59 lbs

Environmental Parameters

• Operating Humidity Range: 5 – 90% (non-condensing)
• Max Operating Temperature: 113 °F
• Min Operating Temperature: 23 °F

Flash Memory

• Installed Size: 4 GB

Networking Features

• Ports: 48 (40 PoE+, 2 uplink 25G)
• Stackable: Yes
• Power Over Ethernet: PoE+

This switch is designed for high performance with a switching capacity of 340 Gbps and supports advanced features like Layer 3 switching and multiple routing protocols.
