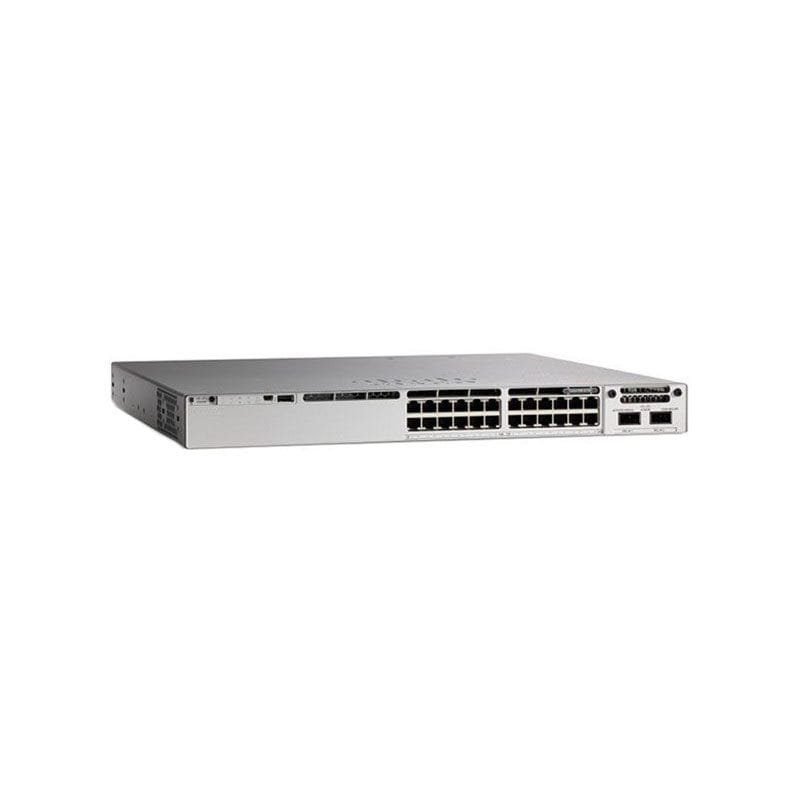

C9300-24P-1E Cisco Catalyst 9300 24-Port Network Switch

C9300-24P-1E Technical Specifications

Cisco Catalyst 9300 Network Essentials Managed Switch – 24 Ports

Capacity

• Flexible NetFlow entries: 64,000
• IPv4 routing table entries: 32,000
• IPv6 routing table entries: 16,000
• Packet buffer size: 16 MB
• Switched virtual interfaces (SVIs): 2,000
• VLAN IDs: 4,000

Dimensions & Weight

• Depth: 17.7 in
• Height: 1.7 in
• Weight: 16.31 lbs
• Width: 17.5 in

Environmental Parameters

• Operating Humidity Range: 5 – 90% (non-condensing)
• Storage Humidity Range: 5 – 90% (non-condensing)
• Max Operating Temperature: 113 °F
• Min Operating Temperature: 23 °F
• Max Storage Temperature: 158 °F
• Min Storage Temperature: -40 °F

Flash Memory

Installed Size: 16 GB

Header

• Brand: Cisco
• Compatibility: PC
• Edition: Network Essentials
• Manufacturer: CISCO DS HARDWARE DIRECT
• Model: 9300
• Packaged Quantity: 1
• Product Line: Cisco Catalyst

Networking Features

• Advanced Switching: Layer 3
• Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ad (LACP), and more.

Performance

• Forwarding Rate: 154.76 Mpps
• Switching Capacity: 128 Gbps
• Stacking Bandwidth: 480 Gbps

Power Device

Power Provided: 715 Watts, with optional redundancy.

RAM

Installed Size: 8 GB
