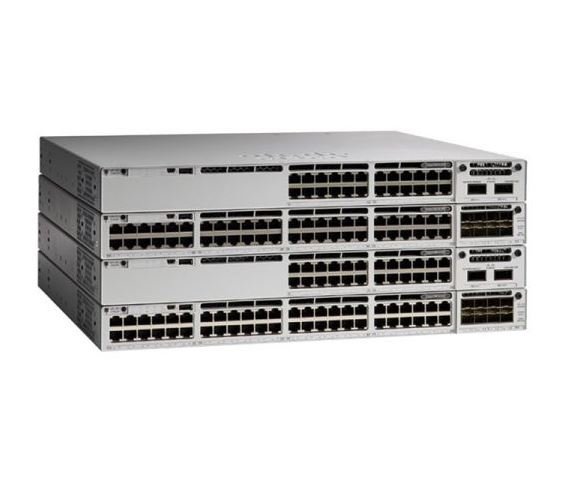

C9300-48S-E Cisco Catalyst 9300 48-Port Switch

C9300-48S-E Technical Specifications

Cisco Catalyst 9300 48 Ports Modular Uplinks 1G SFP, Network Essentials

Header
Brand: Cisco
Manufacturer: Cisco
Model: C9300-48S-E
Product Line: Cisco Catalyst
Product Series: C9300
Performance
Interface: 48x 1G SFP
Switching Capacity: 256 Gbps
Stacking Bandwidth: 480 Gbps
Switching Capacity with Stacking: 736 Gbps
Forwarding Rate: 190.47 Mpps
Forwarding Rate with Stacking: 547.62 Mpps
Total Number of MAC Addresses: 32,000
Total Number of IPv4 Routes: 32,000 (including 24,000 direct and 8,000 indirect)
IPv4 Routing Entries: 32,000
IPv6 Routing Entries: 16,000
Multicast Routing Scale: 8,000
QoS Scale Entries: 5,120
ACL Scale Entries: 5,120
DRAM: 8 GB
Flash: 16 GB
VLAN IDs: 4,094
Total Switched Virtual Interfaces (SVIs): 2,000
Jumbo Frames: 9,198 bytes
Total Routed Ports per 9300 Series Stack: 448
Default AC Power Supply: 1100W AC
Total 10/100/1000 or Multigigabit Copper Ports: 48x 5 Gbps UPOE ports
Feature
Switch fundamentals include Layer 2, Routed Access (RIP, EIGRP Stub, OSPF – 1000 routes), PBR, PIM Stub Multicast, PVLAN, VRRP, CDP, QoS, FHS, 802.1X, MACsec-128, CoPP, SXP, IP SLA Responder, and SSO.
Automation features support NETCONF, RESTCONF, gRPC, YANG, PnP Agent, ZTP/Open PnP, and GuestShell (On-Box Python).
Telemetry and visibility capabilities include model-driven telemetry, sampled NetFlow, SPAN, and RSPAN.
Dimensions, Weight, and MTBF Metrics
Dimensions (H x W x D): 1.73 x 17.5 x 17.7 inches / 4.3 x 44.4 x 44.9 cm
Weight: 17.32 pounds / 7.86 kilograms
Mean Time Between Failures: 281,920 hours.
