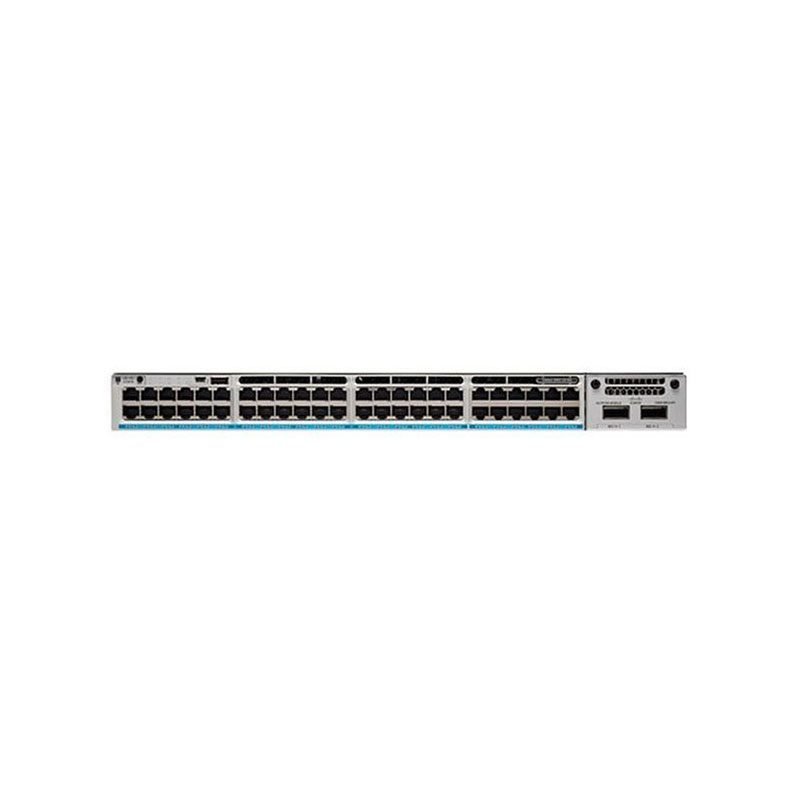

C9300-48UB-E Cisco Catalyst 9300 Series 48-Port Switch

C9300-48UB-E Technical Specifications

Cisco Catalyst 9300 Series 48-Port Modular Switch with 1G UPOE, Network Essentials

Header
Brand: Cisco
Manufacturer: Cisco
Model: C9300-48UB-E
Product Line: Cisco Catalyst
Product Series: C9300
Port Count: 48 Ports
Performance
Switching Capacity: 256 Gbps
Switching Capacity with Stacking: 736 Gbps
Forwarding Rate: 190.48 Mpps
Forwarding Rate with Stacking: 547.62 Mpps
Total MAC Addresses: 64,000
Total IPv4 Routes (including ARP): 64,000
IPv6 Routing Entries: 32,000
Multicast Routing Scale: 16,000
QoS Scale Entries: 18,000
ACL Scale Entries: 18,000
DRAM: 16 GB
Flash Memory: 16 GB
VLAN IDs Supported: 4094
Total Switched Virtual Interfaces (SVIs): 4094
Maximum Jumbo Frame Size: 9198 bytes
Total Routed Ports per 9300 Series Stack: 448
Dimensions, Weight, and Reliability
Dimensions (H x W x D): 1.73 x 17.5 x 16.1 cm / 4.4 x 44.5 x 40.9 cm
Weight: 17.03 lbs / 7.72 kg
Mean Time Between Failures (MTBF): 337,170 hours
Power Supply
Default AC Power Supply: 1100W AC
Available PoE Power: 822 W
UPOE Support: Yes
Cisco StackPower: Yes
