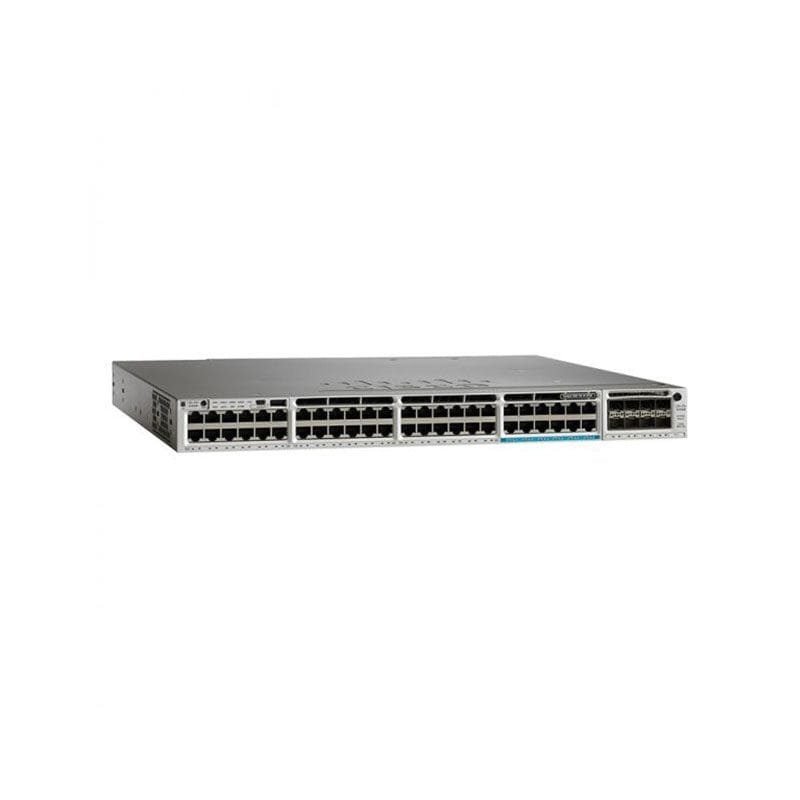

C9300-48UXM-10A Technical Specifications
Cisco Catalyst 9300 Network Advantage Switch 48 Port
Capacity
- ACL scale entries: 32000
- IPv4 routes: 32000
- IPv6 routes: 16000
- Multicast scale: 8000
- QoS scale entries: 5120
- Routed ports: 416
- Switched virtual interfaces (SVIs): 1000
- VLANs supported: 4094
Dimensions & Weight
- Depth: 1.7 in
- Height: 19.1 in
- Weight: 20.59 lbs
- Width: 17.5 in
Environmental Parameters
- Operating Humidity Range: 5 – 90% (non-condensing)
- Storage Humidity Range: 5 – 90% (non-condensing)
- Max Storage Temperature: 158 °F
- Min Storage Temperature: -40 °F
Flash Memory
- Installed Size: 16 GB
Header
- Brand: Cisco
- Edition: Network Advantage
- Manufacturer: CISCO DS HARDWARE DIRECT
- Model: C9300
- Packaged Quantity: 1
- Product Line: Cisco Catalyst
Interface Provided
- Qty: 12, Type: 100/1000/2.5G/5G/10G
- Qty: 36, Type: 100/1000/2.5G
Miscellaneous
- Color Category: Gray
- Compliant Standards: Various standards including RoHS, UL, and FCC
- MTBF: 202,160 hours
Networking
- Advanced Switching: Layer 3
- Compliant Standards: IEEE standards including 802.1D, 802.1Q, etc.
- Features: Extensive features including 802.1x authentication, Cisco StackWise Technology, QoS, and more.
- Form Factor: Rack-mountable
- Jumbo Frame Support: 9198 bytes
- MAC Address Table Size: 32000 entries
- PoE Budget: 490 W
- Ports Qty: 48
- Power Over Ethernet (PoE): UPOE
- Remote Management Protocol: CLI, NETCONF, RESTCONF, SNMP, etc.
- Routing Protocol: Various protocols including EIGRP, OSPF, and more.
- Stackable: Yes
- Subcategory: Network hubs and switches
- Subtype: Gigabit Ethernet
- Type: Switch
Performance
- Forwarding rate: 431.54 Mpps
- Switching capacity: 580 Gbps
Power Device
- Frequency Required: 50-60 Hz
- Hot-Plug: Yes
- Installed Qty: 1
- Max Supported Qty: 2
- Nominal Voltage: AC 120/230 V
- Power Provided: 1100 Watt
- Power Redundancy: Optional
- Type: Internal power supply
RAM
- Installed Size: 8 GB
