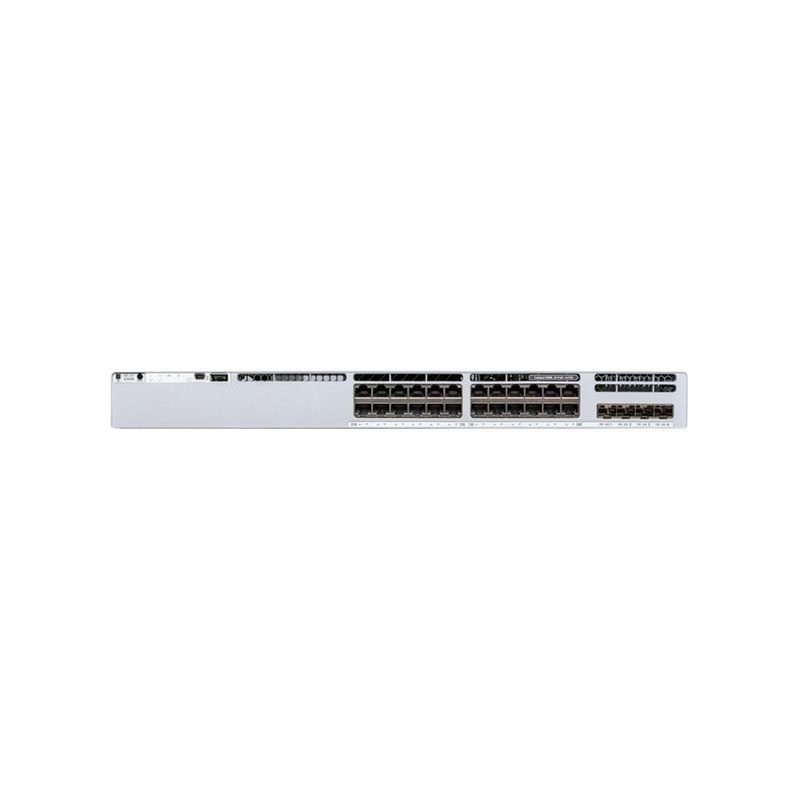

C9300L-24T-4X-A Cisco Catalyst 9300L 24-Port Switch

C9300L-24T-4X-A Technical Specifications

Cisco Catalyst 9300L Network Advantage Switch 24 Port

Environmental Parameters

• Operating Humidity: 5 – 90% (non-condensing)
• Storage Humidity: 5 – 90% (non-condensing)
• Max Storage Temperature: 158 °F
• Min Storage Temperature: -40 °F

Header

• Brand: Cisco
• Edition: Network Advantage
• Manufacturer: CISCO DS HARDWARE DIRECT
• Model: 9300L
• Packaged Quantity: 1
• Product Line: Cisco Catalyst

Interface Provided

• Uplink Connector Type: SFP+ (4)
• 10GBase-X
• RJ-45 Connector Type: 24
• 1000Base-T

Miscellaneous

• Color: Gray
• MTBF: 387,700 hours

Networking

• Layer 3 Advanced Switching
• Standards Compliance: IEEE 802.1D, 802.1Q, 802.3, and more
• Features: 16MB packet buffer, Cisco StackWise Technology, QoS, and more

Power Device

• Nominal Voltage: AC 120/230 V
• Power Provided: 350 Watt
• Hot-Plug: Yes

Dimensions & Weight

• Depth: 1.7 in
• Height: 16.1 in
• Weight: 14.95 lbs
• Width: 17.5 in

Performance

• Forwarding Rate: 95.23 Mpps
• Switching Capacity: 128 Gbps
