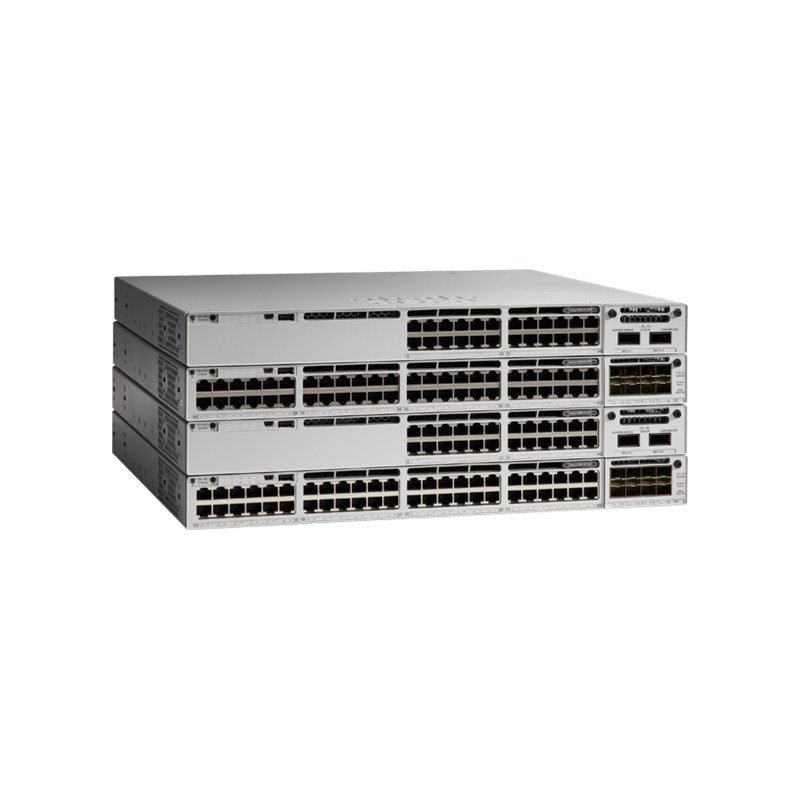

C9300L-48P-4G-A Cisco Catalyst 9300L 48-Port Switch

C9300L-48P-4G-A Technical Specifications

Cisco Catalyst 9300L Network Advantage Switch – 48 Ports

Capacity

• ACL scale entries: 64000
• FNF entries: 64000
• IPv4 routes: 32000
• IPv6 routes: 16000
• Multicast scale: 8000
• Packet buffer size: 16 MB
• QoS scale entries: 5120
• Switched virtual interfaces (SVIs): 1000
• Virtual networks: 64
• VLANs supported: 4094

Dimensions & Weight

• Depth: 1.7 in
• Height: 16.1 in
• Weight: 15.5 lbs
• Width: 17.5 in

Environmental Parameters

• Operating Humidity Range: 5 – 90% (non-condensing)
• Storage Humidity Range: 5 – 90% (non-condensing)
• Max Operating Temperature: 113 °F
• Max Storage Temperature: 158 °F
• Min Operating Temperature: 23 °F
• Min Storage Temperature: -40 °F

Flash Memory
Installed Size: 16 GB
Header

• Brand: Cisco
• Edition: Network Advantage
• Manufacturer: Cisco Systems
• Model: 9300L
• Packaged Quantity: 1
• Product Line: Cisco Catalyst

Interface Provided

• PoE+: 48 RJ-45 Ports
• 4 SFP Uplinks
• 1 Console Port
• Management Ports: USB 2.0

Miscellaneous
Color: Gray
Compliant Standards: Multiple safety and performance certifications.
Performance
Switching capacity: 104 Gbps, with stacking up to 424 Gbps.
Power Device
Power: 715 Watts, with optional redundancy.
RAM
Installed Size: 8 GB.
