C9404R Technical Specifications

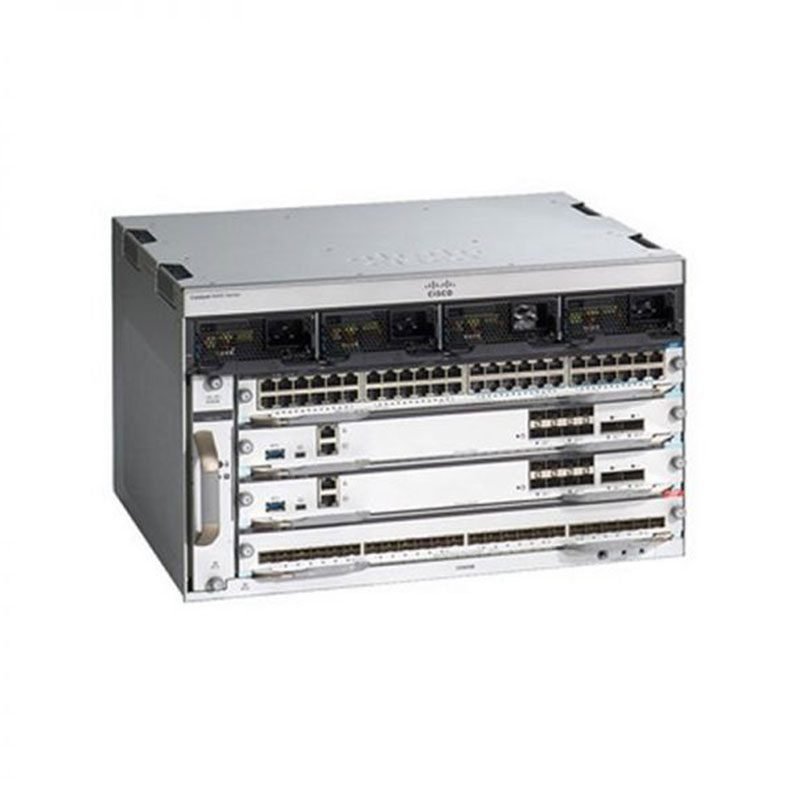

Cisco Catalyst 9404R Rack-Mountable Switch
Slot Configuration
Free Qty: 2
Total Qty: 2
Type: Supervisor slot
Free Qty: 4
Total Qty: 4
Type: Line-card slot
Networking Features
Includes: Fan tray, side-to-side airflow
Form Factor: Rack-mountable
Subcategory: Network hubs and switches
Type: Switch
Miscellaneous Information
Color: Gray
Compliant Standards: AS/NZS 60950-1, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CISPR 32 Class A, CNS 13438 Class A, EN 300 386, EN 50121-4, EN 55022 Class A, EN 55032 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 55024, ETS 300 019-2-1 Class 1.2, ETS 300 019-2-2 Class 2.3, ETS 300 019-2-3 Class 3.2, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1, KN32 Class A, KN35, RoHS 5/6, TCVN 7189 Class A, TCVN 7317, V-3 Class A
Height (Rack Units): 6
Environmental Parameters
Operating Humidity Range: 10 – 95% (non-condensing)
Storage Humidity Range: 10 – 95% (non-condensing)
Max Operating Temperature: 113 °F
Max Storage Temperature: 158 °F
Min Operating Temperature: 23 °F
Min Storage Temperature: -40 °F
Header Information
Brand: Cisco
Manufacturer: CISCO DS HARDWARE DIRECT
Model: 9404R
Packaged Quantity: 1
Product Line: Cisco Catalyst
Power Device
Hot-Plug: Yes
Installed Qty: 0
Max Supported Qty: 4
Nominal Voltage: AC 120/230 V
Power Redundancy: Optional
Power Redundancy Scheme: N+N (with optional power supply)
Type: Internal power supply
Dimensions & Weight
Depth: 16.3 in
Height: 10.4 in
Weight: 37.92 lbs
Width: 17.3 in
