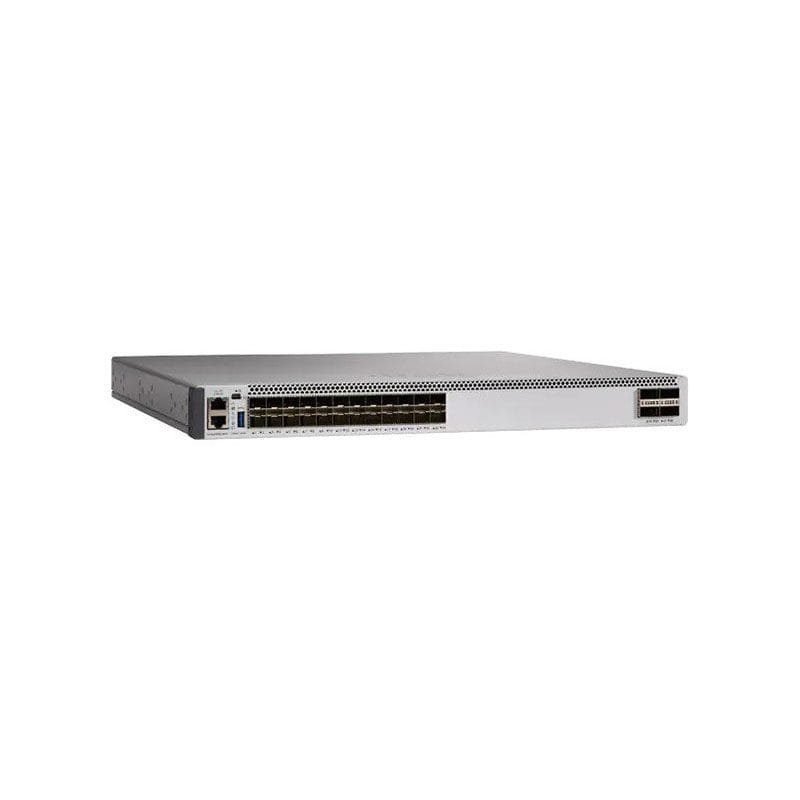

C9500-24Y4C-1E Cisco Catalyst 9500 24-Port Network Switch

C9500-24Y4C-1E Technical Specifications

Cisco Catalyst 9500 Network Essentials Switch with 24 Managed Ports

Cabinet
Chassis Built-in Devices: RFID tag
Environmental Parameters
Operating Humidity Range: 5 – 90% (non-condensing)
Storage Humidity Range: 5 – 95% (non-condensing)
Maximum Operating Temperature: 104 °F
Maximum Storage Temperature: 149 °F
Minimum Operating Temperature: 32 °F
Minimum Storage Temperature: -4 °F
Header
Brand: Cisco
Edition: Network Essentials
Manufacturer: CISCO DS HARDWARE DIRECT
Model: 9500
Packaged Quantity: 1
Product Line: Cisco Catalyst
Interface Provided
Connector Type: SFP28
Quantity: 24 SFP28
Type: 25Gbit LAN
Quantity: 2
Type: USB 3.0
Quantity: 4
Type: 100Gbit LAN
Miscellaneous
Color Category: Gray
Compliant Standards: AS/NZS 3548 Class A, BSMI Class A, and more.
Encryption Algorithm: 256-bit AES
Height (Rack Units): 1
MTBF: 336,780 hours
Networking
Advanced Switching: Layer 3
Compliant Standards: IEEE 802.1ae, IEEE 802.1D, and others.
Features: 802.1x authentication, Quality of Service (QoS), and more.
Form Factor: Rack-mountable
Jumbo Frame Support: 9198 bytes
Manageable: Yes
Ports Quantity: 24
Remote Management Protocol: NETCONF, RESTCONF, and others.
Routing Protocol: BGP, EIGRP, OSPF, and more.
Stackable: Yes
Status Indicators: Status
Subcategory: Network hubs and switches
Type: Switch
Power Device
Frequency Required: 50 – 60 Hz
Hot-Plug: Yes
Installed Quantity: 1
Max Supported Quantity: 2
Nominal Voltage: AC 120/230 V
Power Provided: 650 Watt
Power Redundancy: Optional
Processor
Clock Speed: 2.4 GHz
Installed Quantity: 1
Dimensions & Weight
Depth: 18 in
Height: 1.7 in
Weight: 20.99 lbs
Width: 17.5 in
Service & Support
Type: Limited lifetime warranty
Performance
Type: Forwarding rate
Value: 1 Bpps
Type: Switching capacity (full duplex)
Value: 1.6 Tbps
RAM
Installed Size: 16 GB
