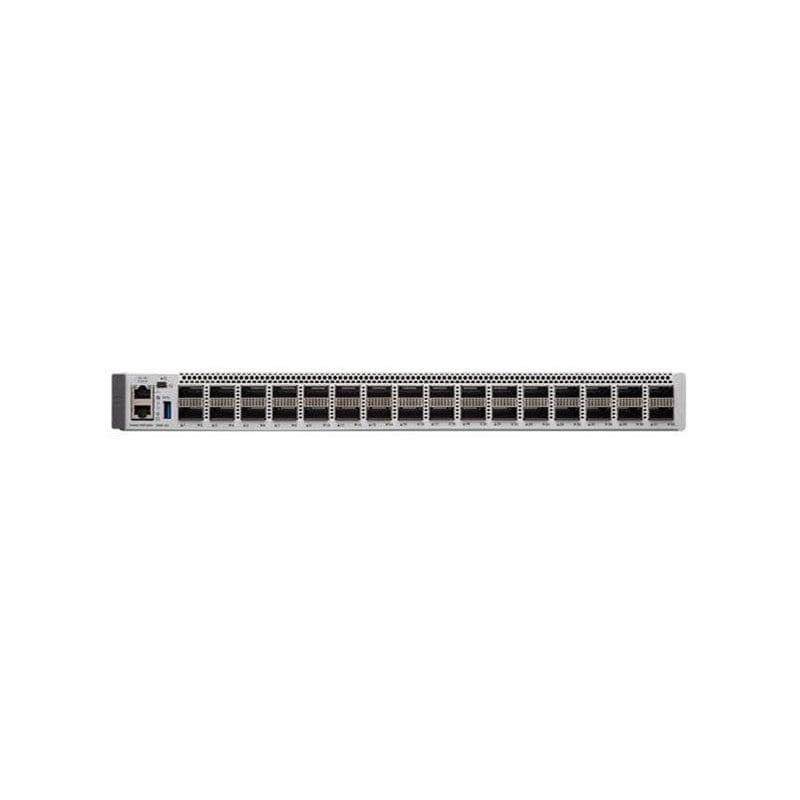

C9500-32QC-A Technical Specifications
Cisco Catalyst 9500 Series 32-Port 40G Switch, NW Adv. License
Capacity
- FNF entries: 96,000
- Host IPv4 routes: 90,000
- Host IPv6 routes: N/A
- Indirect IPv4 routes: 212,000
- Indirect IPv6 routes: N/A
- Multicast scale: 32,000
- QoS ACL scale: 16,000
- Routing table entries: 80,000
- Security ACL scale: 270,000
- Switched virtual interfaces (SVIs): N/A
- VLAN IDs: 4,000
Dimensions & Weight
- Depth: 18 in
- Height: 1.7 in
- Weight: 21.85 lbs
- Width: 17.5 in
Environmental Parameters
- Operating Humidity Range: 5 – 90% (non-condensing)
- Storage Humidity Range: 5 – 95% (non-condensing)
- Max Operating Temperature: 104 °F
- Max Storage Temperature: 149 °F
- Min Operating Temperature: 32 °F
- Min Storage Temperature: -4 °F
Flash Memory
- Installed Size: 16 GB
Header
- Brand: Cisco
- Edition: Network Advantage
- Manufacturer: CISCO DS HARDWARE DIRECT
- Model: 9500
- Packaged Quantity: 1
- Product Line: Cisco Catalyst
Interface Provided
- Connector Type: QSFP
- Quantity: 32
- Type: 100Gbit/40Gbit LAN
- Quantity: 2
- Type: USB 3.0
Miscellaneous
- Color Category: Gray
- Compliant Standards: Various international standards
- Encryption Algorithm: 256-bit AES
- Height (Rack Units): 1
- MTBF: 307,200 hours
Networking
- Advanced Switching: Layer 3
- Compliant Standards: IEEE standards
- Features: Extensive feature set including ACL support, QoS, and more.
- Form Factor: Rack-mountable
- Jumbo Frame Support: 9198 bytes
- Manageable: Yes
- Ports Quantity: 32
Performance
- Forwarding Rate: 1 Bpps
- Switching Capacity (Full Duplex): 3.2 Tbps
Power Device
- Frequency Required: 50 – 60 Hz
- Hot-Plug: Yes
- Installed Quantity: 1
- Max Supported Quantity: 2
- Nominal Voltage: AC 120/230 V
- Power Provided: 650 Watt
- Power Redundancy: Optional
- Power Redundancy Scheme: 1+1
- Type: Internal power supply
Processor
- Clock Speed: 2.4 GHz
- Installed Quantity: 1
RAM
- Installed Size: 16 GB
Software
- Type: Cisco IOS XE 16.8.1
