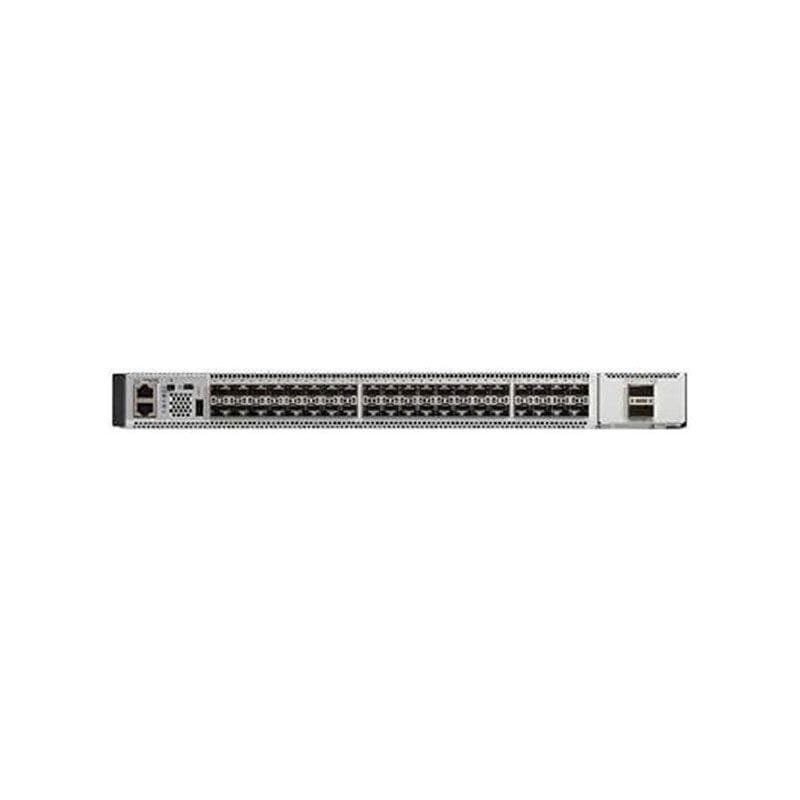

C9500-40X-EDU Cisco Catalyst 9500 40-Port Managed Switch

C9500-40X-EDU Technical Specifications

Cisco Catalyst 9500 Managed Switch – 40 Ports, Rack-Mountable

Cabinet Features
Chassis Built-in Devices: RFID tag
Interface Details
Connector Type: SFP+
Quantity: 40 SFP+
Type: 10GBase-X (2 ports)
Type: USB 3.0 (2 ports)
Networking Capabilities
Advanced Switching: Layer 3
Standards Compliance: IEEE 802.1ae, 802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad (LACP), 802.3ae, 802.3u, 802.3x, 802.3z
Features: ACL support, Built-in ASIC, Cisco StackWise Virtual, Flexible NetFlow, IGMP snooping, IPv6 support, LLDP support, MACsec support, NetFlow, Non-Stop Forwarding, Open Shortest Path First, Quality of Service, Remote Switch Port Analyzer, Stateful switchover, VLAN Double Tagging, Zero-touch provisioning.
Form Factor: Rack-mountable
Jumbo Frame Support: 9198 bytes
MAC Address Table Size: 64K entries
Manageable: Yes
Ports Quantity: 40
Power Over Ethernet: UPOE
Remote Management Protocols: NETCONF, RESTCONF, SNMP, TFTP
Routing Protocols: IGMP, MPLS, OSPF, PIM-SM, RIP-1, RIP-2, VRRP
Miscellaneous
Color: Gray
Compliant Standards: UL 60950-1, FCC CFR47 Part 15, and more.
Encryption: 256-bit AES
Height (Rack Units): 1
MTBF: 180,640 hours
Pricing Type: K-12 education
Environmental Parameters
Humidity Operating Range: 5 – 90%
Max Operating Temperature: 104 °F
Min Operating Temperature: 32 °F
Power Device
Features: Front-to-rear airflow
Power Provided: 950 Watts
Type: Internal power supply
Dimensions & Weight
Depth: 21.5 in
Height: 1.7 in
Width: 17.5 in
Performance
Switching Capacity: 960 Gbps
Forwarding Rate: 720 Mpps
RAM
Installed Size: 16 GB
Technology: DDR4 SDRAM
Flash Memory
Installed Size: 16 GB
