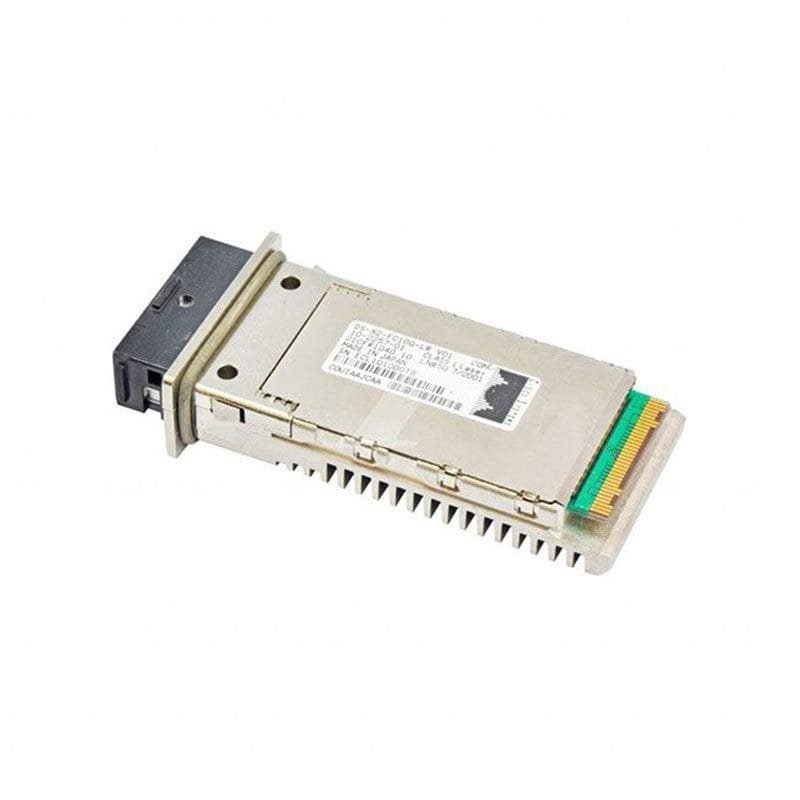

DS-X2-FC10G-LR Cisco 10Gbps Long-Reach X2 Transceiver

DS-X2-FC10G-LR Technical Specifications

Cisco 10Gbps Fibre Channel Long-Reach X2 Transceiver

General Information
Manufacturer: Cisco Systems, Inc.
Part Number: DS-X2-FC10G-LR
Brand: Cisco
Description: This 10-Gbps Fibre Channel Long-Reach transceiver features an X2 form factor and SC connector.
Device Type: Plug-in module
Form Factor: Cisco X2
Data Rate: 10.3125 Gbps
Wavelength: 1310 nm
Power Budget: 10 dB
Maximum Reach: 10 km
Transmit Power: -6 to -1 dBm
Receive Sensitivity: -15 dBm
Voltage: +5.0 V / +3.3 V
Power Consumption: < 4 W
Connector: Dual SC/PC
Fiber Type: Single-Mode Fiber (SMF)
Operating Temperature: 0 to 70 °C
DDMI: Supported
Application: Fiber Channel networking solutions.
