DWDM-SFP10G-61.41= Technical Specification

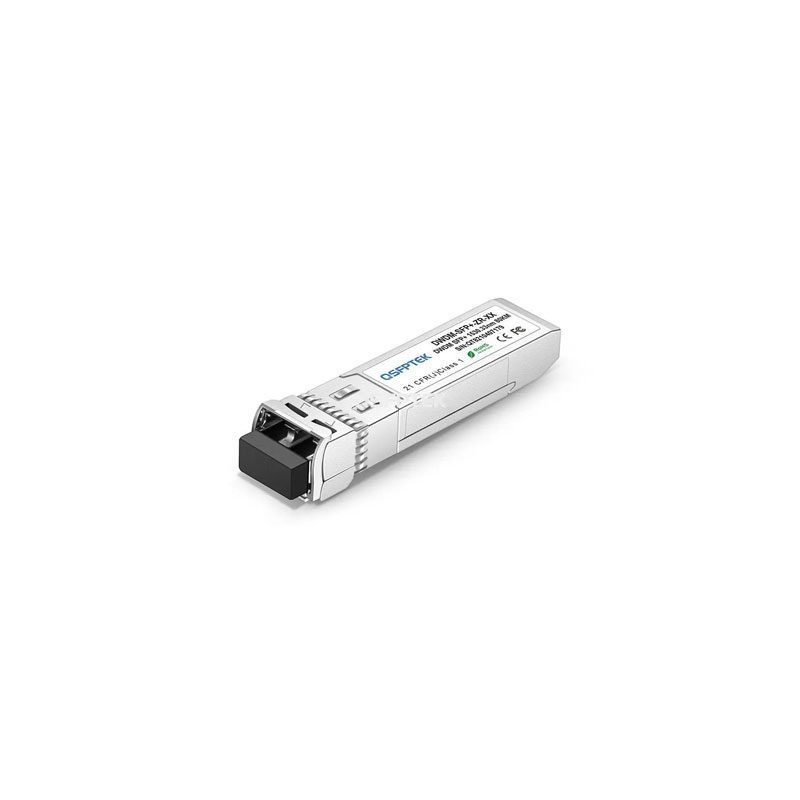

Cisco 10G SFP+ Module for 80KM SMF
Brand: Cisco
Media Type: Single-Mode Fiber (SMF)
TX Wavelength: Ch. 20 (1561.42 nm)
RX Wavelength: ITU-T DWDM Grid 100 GHz C-Band
Minimum Optical Budget: 23 dB
Maximum Distance: 80 km
Supported Data Rate: 9.95-11.32 Gbps
Supported Applications: 10G Ethernet (10.31 Gbps), STM-64 (9.95 Gbps), ODU2 (10.037 Gbps), ODU2e (10.399 Gbps), OTU2 (10.70 Gbps), OTU1f (11.27 Gbps), OTU2f (11.32 Gbps), OTU1e (11.049 Gbps), OTU2e (11.095 Gbps)
DDM/DOM: Supported
Temperature Range: 0°-70°C
Connectors: Double LC
Tx Wavelength Bandwidth: 100GHz (0.8 nm)
Rx Wavelength Bandwidth: 1260 – 1620 nm
Minimum Transmitting Power: 0 dB
Maximum Transmitting Power: 5 dB
Receiver Sensitivity: -23 dBm
Receiver Overload: -6 dBm
