E65685-002 Technical Specifications

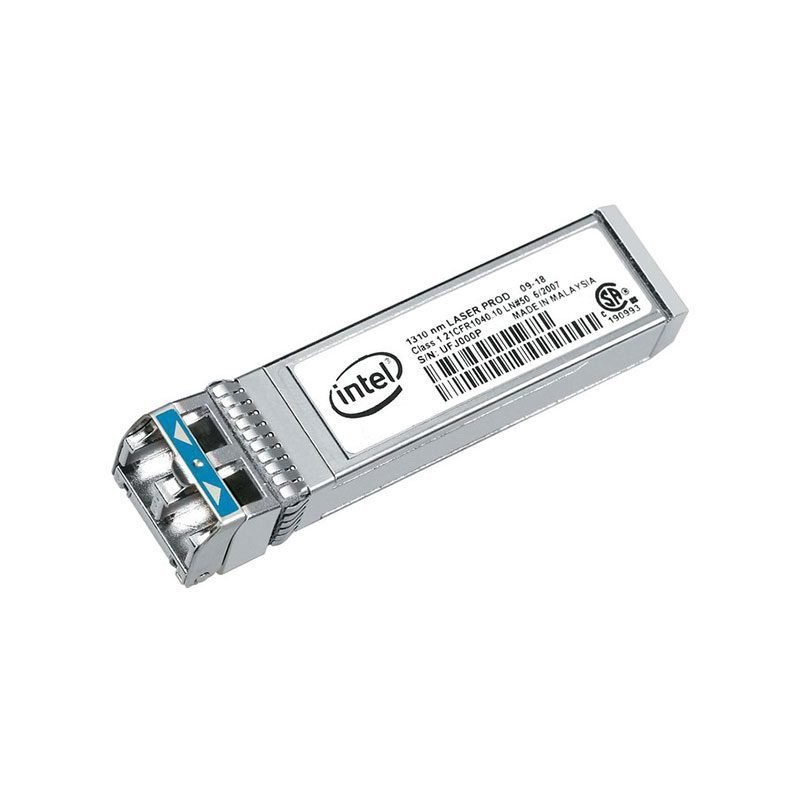

Intel Dual Rate 10GBase-LR 1310nm SFP+ Optical Transceiver
This SFP+ transceiver module is a plug-in device engineered for wired connectivity. It supports both Gigabit Ethernet and 10 Gigabit Ethernet protocols, operating at an optical wavelength of 1310 nm. The module is compatible with a single SFP+ slot and is designed for use with 1000Base-LX and 10GBase-LR cabling types.
Key technical details include:
- Cable Standard: 1310 nm Fiber
- Ethernet Standard: Gigabit Ethernet
- Expansion Slot: SFP+
- Fiber Mode: Single-mode
- Maximum Data Rate: 10 Gb/s
- Supported Distance: Up to 10 km
- Operating System: Compatible with PC
- Quality of Service: Yes
- Usage: Switching Network
- Connector Type: LC Connector for 10GBase-LR Network Duplex SFP+ Optical Fiber
