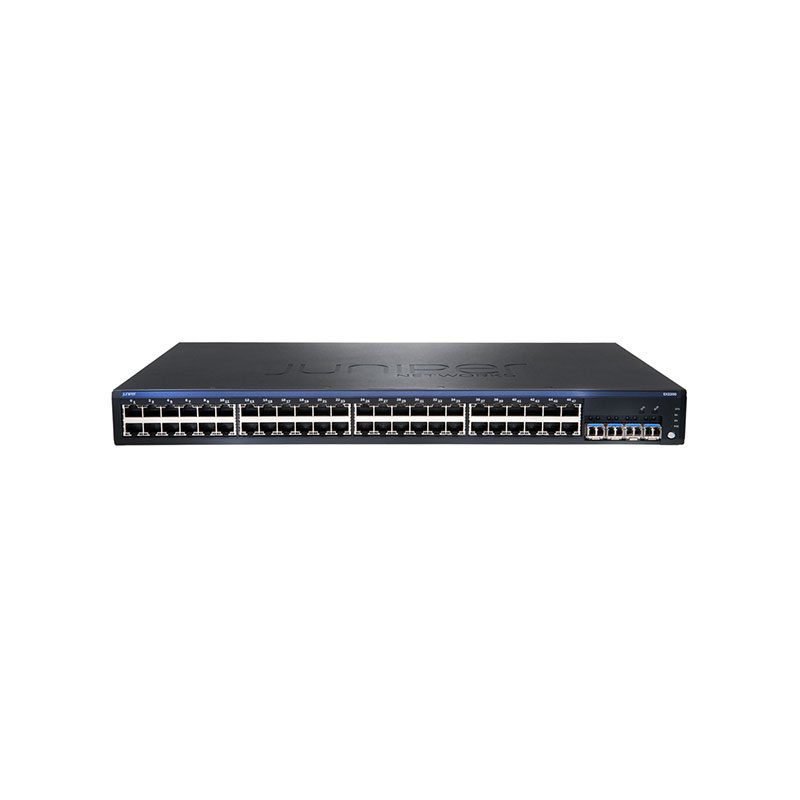

EX2200-48P-4G Juniper EX2200 48-Port Managed Switch

EX2200-48P-4G Technical Specifications

Juniper Networks EX 2200 48-Port Managed Switch

Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks EX 2200
Model: 48P
Packaged Quantity: 1
Chassis
Built-in Devices: Status LCD
Processor
Clock Speed: 800 MHz
RAM
Installed Size: 512 MB
Flash Memory
Installed Size: 1 GB
Performance
Performance: Throughput of 77 Mpps
Networking
Type: Switch
Subcategory: Network hubs and switches
Subtype: Gigabit Ethernet
Form Factor: Desktop
Ports Quantity: 48
Advanced Switching: Layer 3
Routing Protocols: RIP-1, RIP-2, IGMP
MAC Address Table Size: 8K entries
Manageable: Yes
Remote Management Protocols: HTTP, SNMP 1, HTTPS, SSH-2, RMON 3, SNMP 2c, SNMP 3, RMON 9, RMON 2, Telnet, RMON 1, TFTP
Power Over Ethernet (PoE): PoE+
PoE Budget: 405 watts
Status Indicators: LCD display
Features: Jumbo Frames support, DHCP server, ARP support, Store and forward, Layer 2 switching, VLAN support, IGMP snooping, Quality of Service (QoS), and more.
Compliant Standards: IEEE 802.3 standards including 802.3z, 802.3x, 802.1Q, and others.
Ports
Quantity: 48
Type: 10/100/1000 (PoE+)
Ports (2nd)
Quantity: 4
Type: Gigabit SFP
Interface Provided
Interfaces: 1 x console RJ-45 management, 4 x Gigabit LAN SFP uplink, 48 x 1000Base-T RJ-45 PoE+, 1 x 100Base-TX RJ-45 management, 1 x USB Type A
Power Device
Type: Internal power supply
Power Consumption (Operational): 91 watts
Dimensions & Weight
Width: 17.4 inches
Depth: 10 inches
Height: 1.8 inches
Weight: 9.92 lbs
Environmental Parameters
Min Operating Temperature: 32°F
Max Operating Temperature: 113°F
Humidity Range Operating: 10 – 85%
