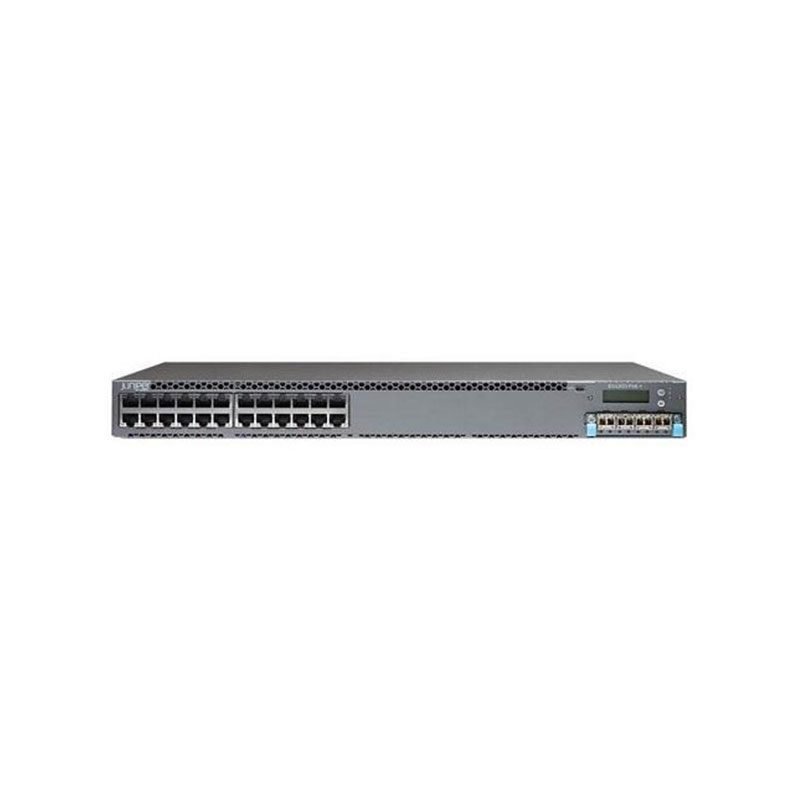

EX4300-24T-S Juniper Networks EX Series 24-Port Switch

EX4300-24T-S Technical Specifications

Juniper Networks EX Series EX4300-24T Switch with 24 Managed Ports

Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks EX Series
Model: EX4300-24T
Packaged Quantity: 1
Chassis
Installed Devices / Modules Quantity: 0
Supported Devices / Modules Quantity: 1
Processor
Type: PowerPC
Installed Quantity: 1
Clock Speed: 1.5 GHz
RAM
Installed Size: 2 GB
Flash Memory
Installed Size: 2 GB
Performance
Switching Capacity (64-byte packet size): 448 Gbps
Throughput: 333 Mpps
Capacity
ARP Entries: 64,000
IPv6 Routes (Multicast): 16,000
QoS Hardware Queues per Port: 12
VLAN Spanning Tree Protocol Instances: 510
Max Units in a Stack: 10
Ports Quantity: 24
Networking
Type: Switch
Subcategory: Network hubs and switches
Subtype: Gigabit Ethernet
Manageable: Yes
Remote Management Protocol: SSH, SNMP, CLI, and more
Status Indicators: LCD display
Features: sFlow, Port mirroring, High Availability, and more
Dimensions & Weight
Width: 17.4 inches
Depth: 16.4 inches
Height: 1.7 inches
Weight: 13.01 lbs
Environmental Parameters
Operating Temperature: 32°F to 113°F
Storage Temperature: -40°F to 158°F
Humidity Range Operating: 10 – 85% (non-condensing)
