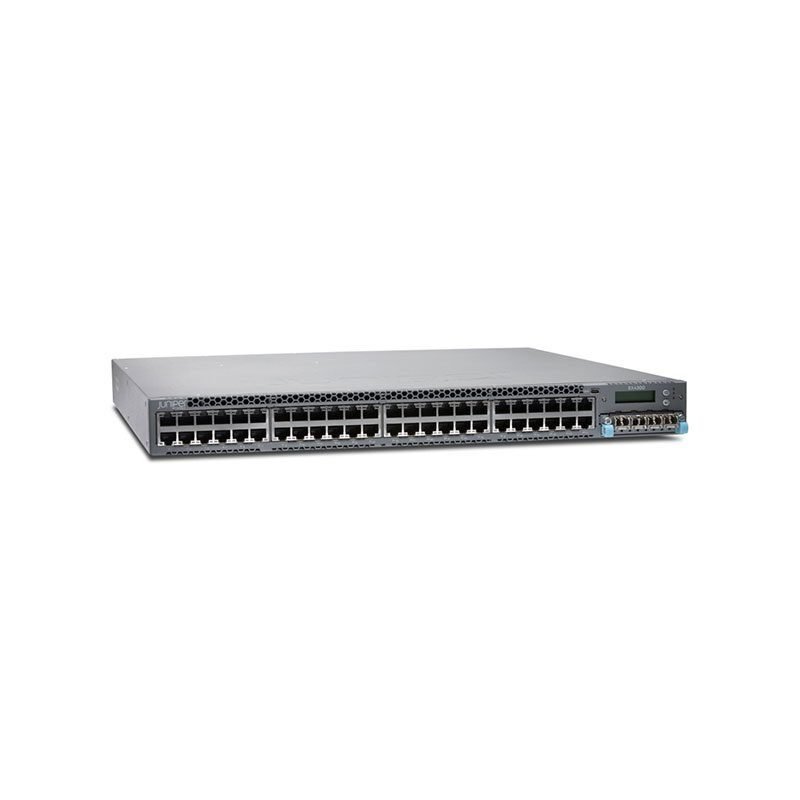

EX4300-48P-TAA Juniper Networks EX Series 48-Port Switch

EX4300-48P-TAA Technical Specifications

Juniper Networks EX Series EX4300-48P Switch with 48 Managed Ports

Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks EX Series
Model: EX4300-48P
Packaged Quantity: 1
Chassis
Airflow Direction: Front to back
Built-in Devices: Status LCD
Installed Devices / Modules Qty: 0
Supported Devices / Modules Qty: 1
Processor
Type: PowerPC
Installed Qty: 1
Clock Speed: 1.5 GHz
RAM
Installed Size: 2 GB
Flash Memory
Installed Size: 2 GB
Performance
Throughput: 369 Mpps, Switching Capacity: 496 Gbps
Capacity
VLAN instances: 510, Max neighboring networks: 20000, Virtual interfaces: 4093, IPv4 routes: 32000, IPv6 routes: 18000, MSTP instances: 64, ARP entries: 64000
Networking
Type: Switch
Subcategory: Network hubs and switches
Subtype: Gigabit Ethernet
Form Factor: Rack-mountable
Stackable: Yes
Max Units in a Stack: 10
Ports Quantity: 48
Advanced Switching: Layer 3
Routing Protocols: Supports various protocols including CIDR, IGMP, and OSPF.
Ports
Qty: 48, Type: 10/100/1000 (PoE+)
Additional Ports: 4 x 40 Gigabit QSFP+
Power Device
Type: Internal power supply, Hot-Plug: Yes
Power Provided: 1100 watt
Dimensions & Weight
Width: 17.4 in, Depth: 16.4 in, Height: 1.7 in, Weight: 16.09 lbs
Environmental Parameters
Operating Temperature: 32°F to 113°F, Storage Temperature: -40°F to 158°F, Humidity: 10 – 85% (operating) and 0 – 95% (storage).
